FTSs Touch | Nano Jacketed Tank Kit

The FTSs Touch | Nano Jacketed Tank Upgrade kit has been designed to leverage components from our home brewing FTSs Touch line in an effort to provide a low-cost solution to pair a 1, 2, or 3.5 BBL Nano Jacketed Unitank and Nano Jacketed Brite Tanks with one of our 3/8 HP or 3/4 HP glycol chillers.

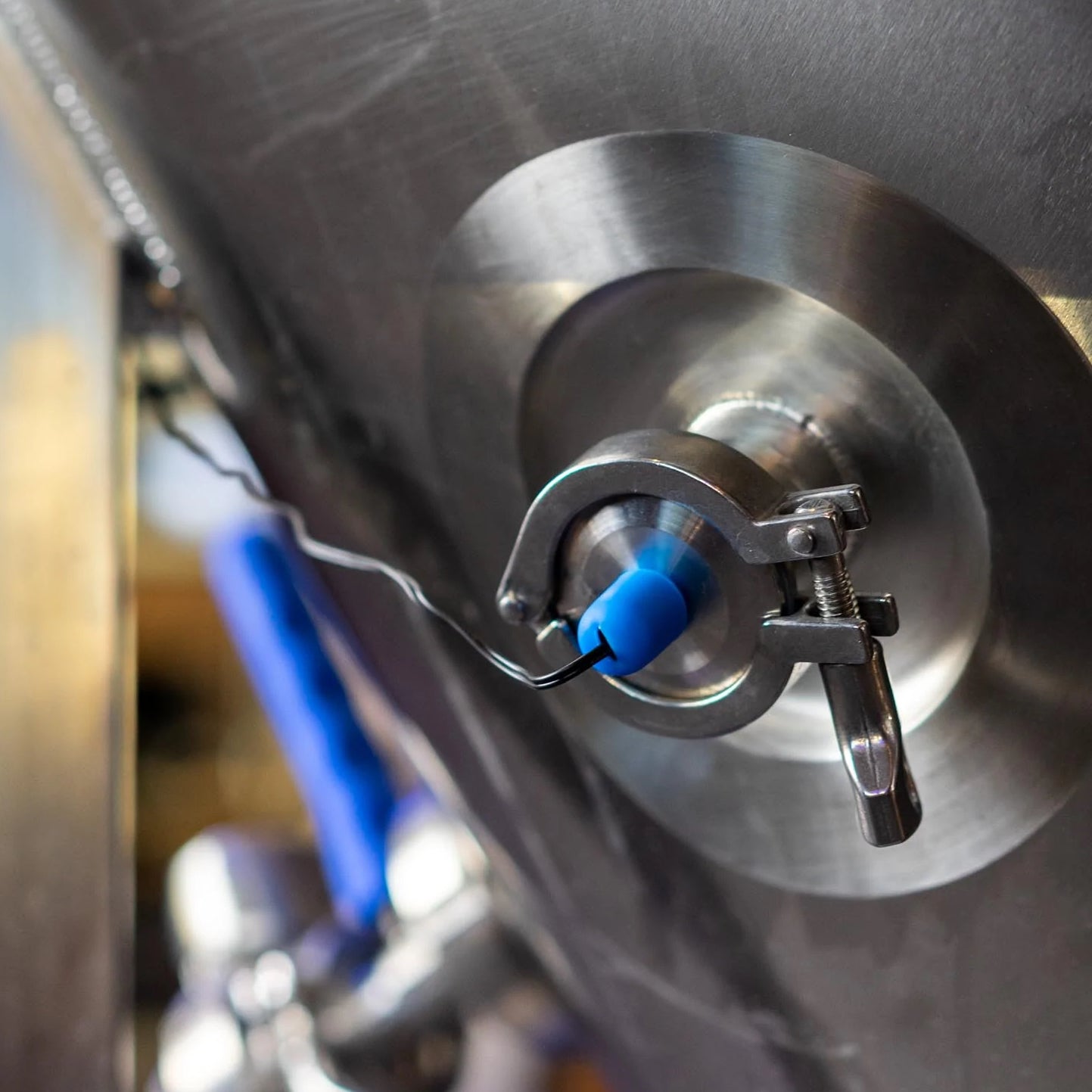

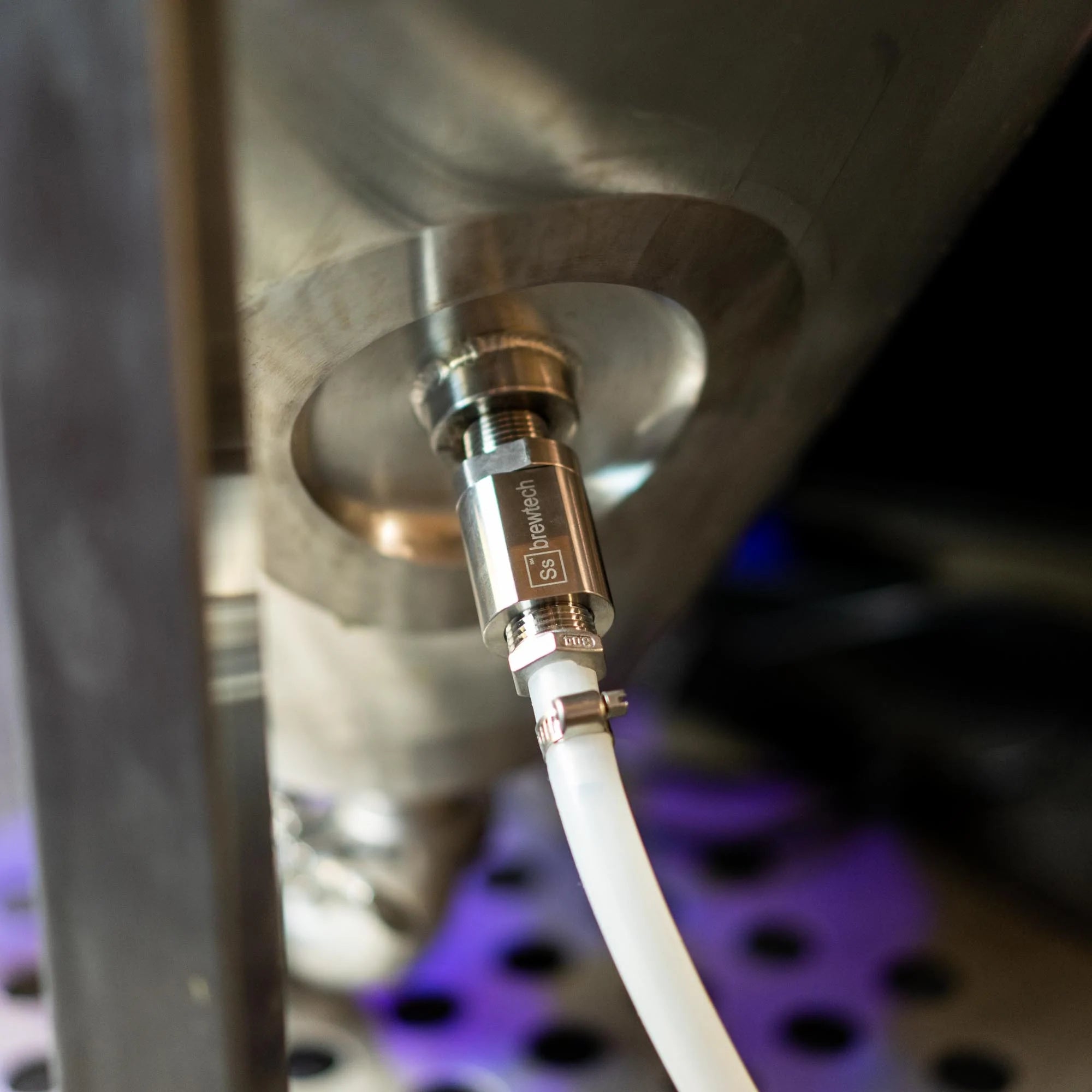

This system features a custom TC thermowell adapter, along with a silicone insert to adapt the temperature probe from an FTSs Touch controller to the welded-in sleeved thermowell port on our line of Nano Jacketed Tanks.  In addition, a custom-designed low-pressure open silicone check valve is included to prevent backflow to the chiller's reservoir when glycol is not flowing.  The kit includes 1/2" NPT to 3/8" barbs to adapt the glycol ports for use with our standard FTSs Touch pump.

Since most Nano Jacketed Tanks are set up for use with a pressurized loop glycol system typically found in commercial breweries, this kit offers a Nano brewery an affordable, easy-to-setup alternative to more elaborate or expensive installations.  Everything is included to interface a single Nano Jacketed Tank between an FTSs Touch and Ss Glycol Chiller.

Cooling options for Ss Branded Glycol Chillers
Cooling options for Pressurized Glycol Loops on Commercial Chillers

Not recommended for 5bbl & Larger Tanks

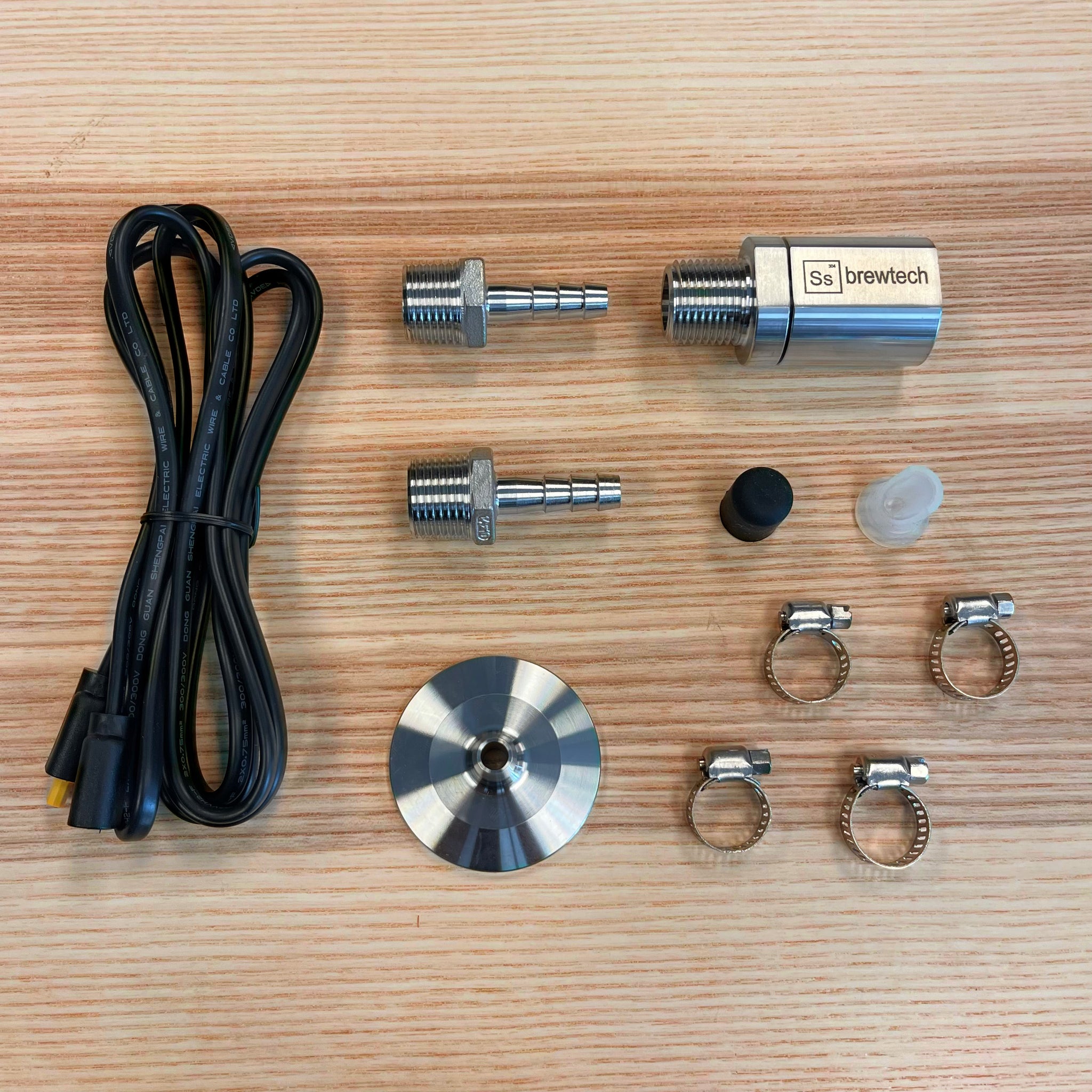

(4) FTSs hose clamp for 3/8" barbs

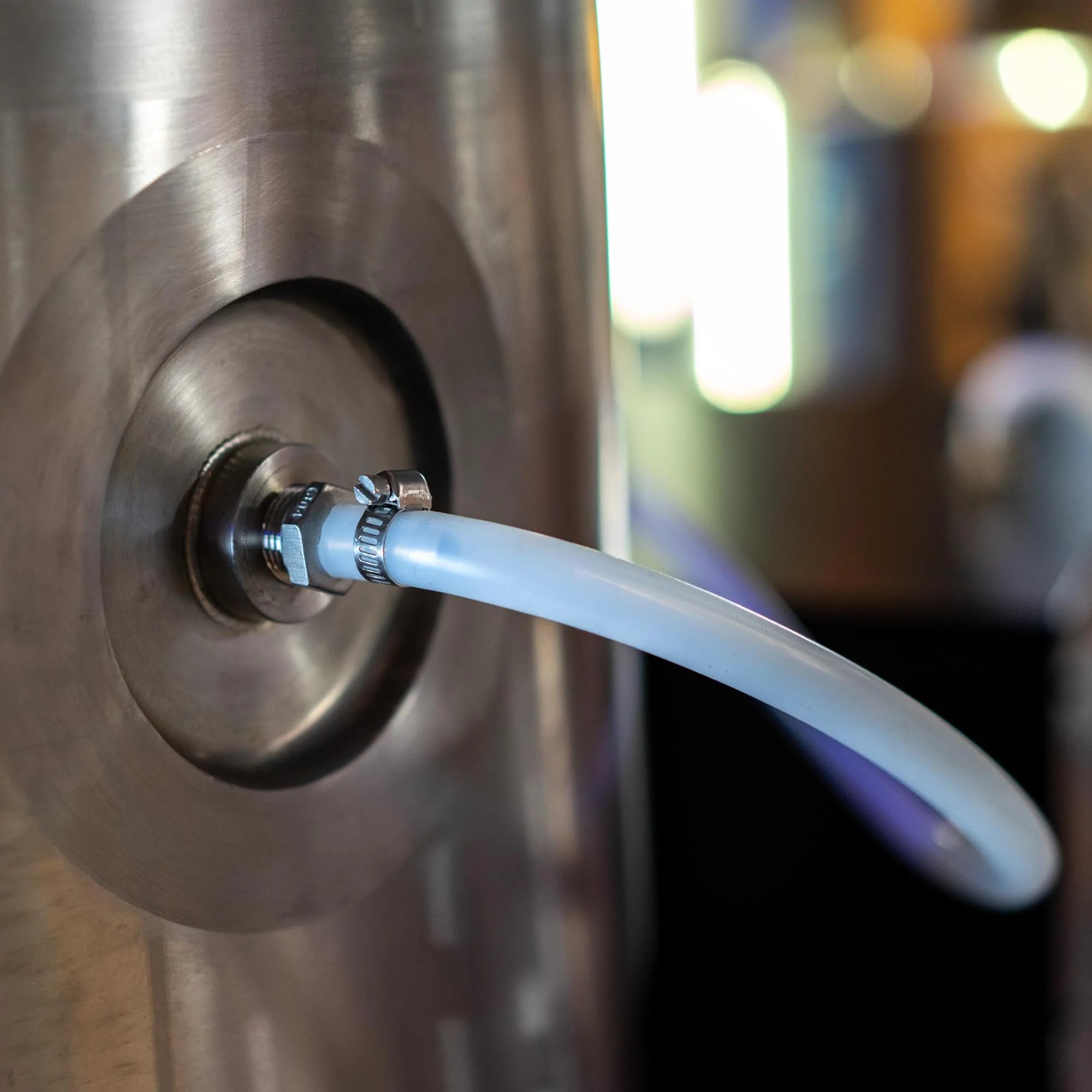

(1) Hose barb - 3/8" to 1/2" MPT

(1) Silicone thermowell cover

(1) 1.5" TC sleeved thermowell adapter

(1) FTSs harness extension 3 ft

(1) Silicone check valve

Works with 1, 2, and 3.5 bbl Nano Jacketed Tanks

Not required for Unitank 2.0
