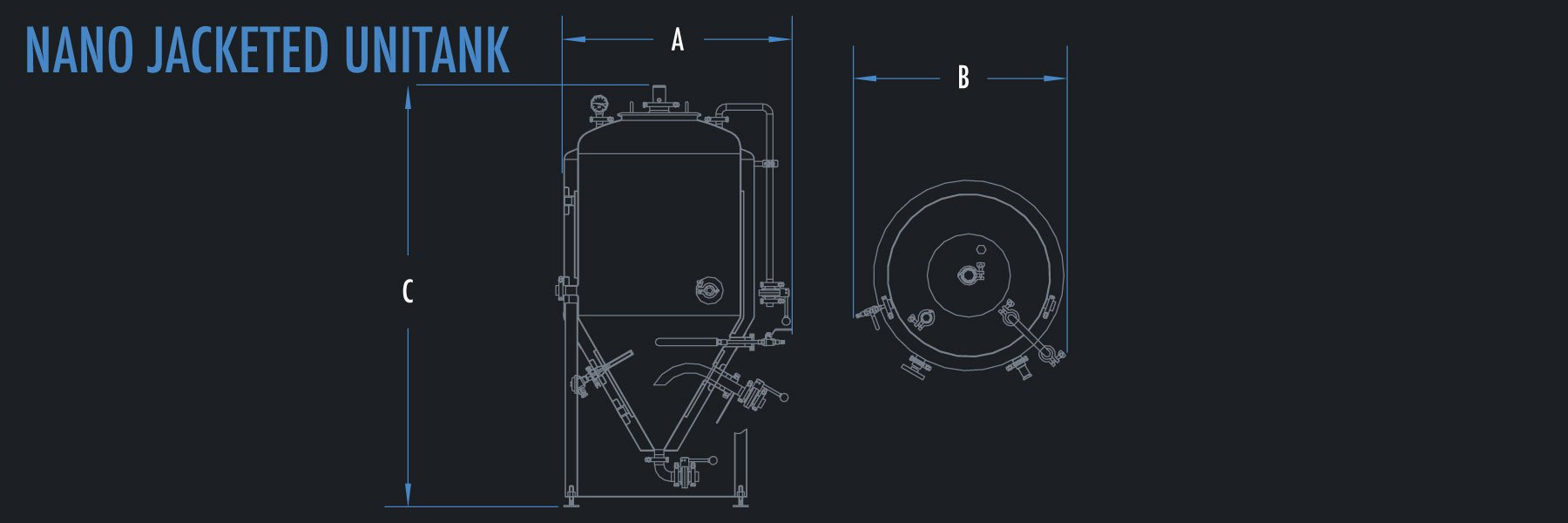

Size
|
Length (A) | Width (B) | Height (C) |
| 1 bbl | 27" | 33" | 57" |
| 2 bbl | 35" | 35" | 69" |
| 3.5 bbl | 45" | 45" | 80" |
Rotatable racking arm with DIN fitting
Sample port w/ Perlick style sample valve
Sleeved thermowell w/ PT100 RTD included
Analog thermometer
Carbonation stone w/ 3/8" Ss Brewtech ball valve
Diaphragm pressure gauge
3" TC combined PRV/dry hop/CIP port
1.2 Bar PRV1" blow-off arm w/butterfly valve
1.5" (2" on 3.5 bbl) dump valve for yeast harvest and trub dump
Rotatable racking arm with DIN fitting
Sample port w/ Perlick style sample valve
Sleeved thermowell w/ PT100 RTD included
Analog thermometer
Carbonation stone w/ 3/8" Ss Brewtech ball valve
Diaphragm pressure gauge
3" TC combined PRV/dry hop/CIP port
1.2 Bar PRV1" blow-off arm w/butterfly valve
1.5" (2" on 3.5 bbl) dump valve for yeast harvest and trub dump
|

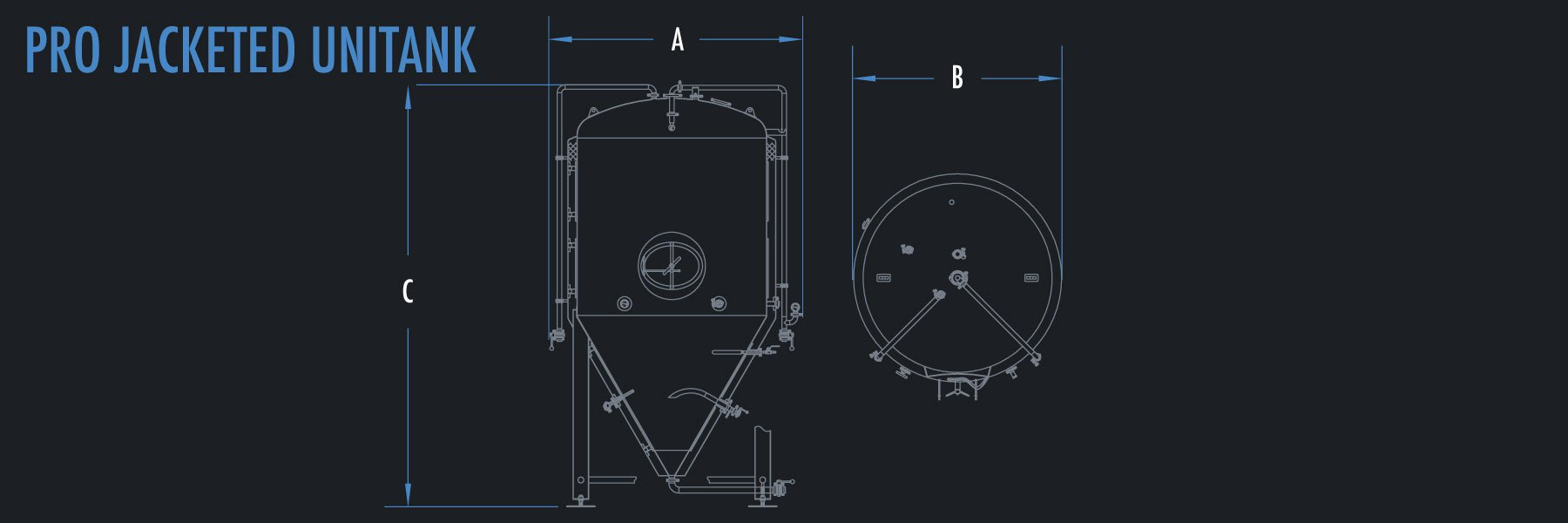

Size
|
Length (A) | Width (B) | Height (C) |
| 5 bbl | 48" | 48" | 85" |
| 7 bbl | 54" | 54" | 91" |
| 10 bbl | 55" | 55" | 101" |
| 15 bbl | 63" | 63" | 111" |
| 20 bbl | 67" | 67" | 124" |
| 30 bbl | 75" | 75" | 144" |
| 40 bbl | 83" | 83" | 152" |
| 60 bbl | 87" | 87" | 192" |
Rotatable racking arm with DIN fitting
Sample port w/ Perlick style sample valve
Sleeved thermowell w/ PT100 RTD included
Analog thermometer
Carbonation stone w/ 3/8" Ss Brewtech ball valve
Diaphragm pressure gauge
4" TC dry hop port
Rotatable racking arm with DIN fitting
Sample port w/ Perlick style sample valve
Sleeved thermowell w/ PT100 RTD included
Analog thermometer
Carbonation stone w/ 3/8" Ss Brewtech ball valve
Diaphragm pressure gauge
4" TC dry hop port
|

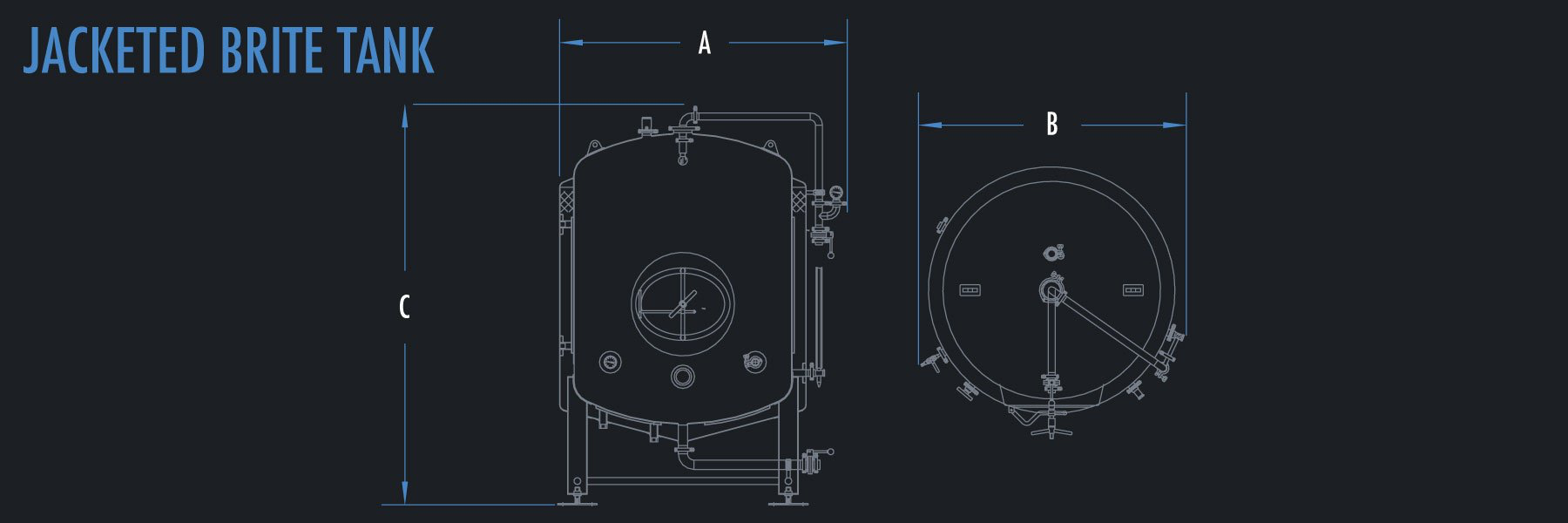

Size
|
Length (A) | Width (B) | Height (C) |
| 5 bbl | 48" | 48" | 76" |
| 7 bbl | 49" | 49" | 75" |
| 10 bbl | 60" | 60" | 90" |
| 15 bbl | 60" | 60" | 92" |
| 20 bbl | 68" | 68" | 102" |
| 30 bbl | 83" | 83" | 134" |
| 40 bbl | 83" | 83" | 147" |
| 60 bbl | 87" | 87" | 187" |
Sample port w/ Perlick style sample valve
Sleeved thermowell w/ PT100 RTD includedAnalog thermometer
Carbonation stone w/ 3/8" Ss Brewtech ball valve
Diaphragm pressure gauge1.2 Bar PRV
Dedicated CIP arm w/ rotary spray ball
Volume sight-glass
Sample port w/ Perlick style sample valve
Sleeved thermowell w/ PT100 RTD includedAnalog thermometer
Carbonation stone w/ 3/8" Ss Brewtech ball valve
Diaphragm pressure gauge1.2 Bar PRV
Dedicated CIP arm w/ rotary spray ball
Volume sight-glass
|

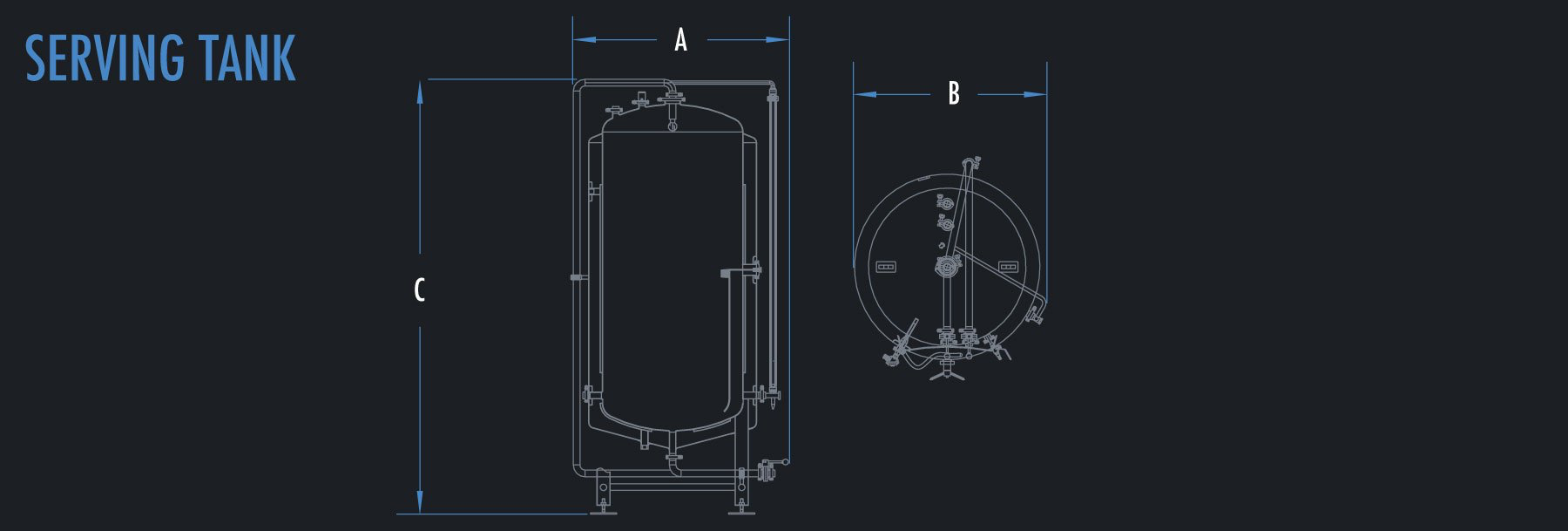

Size
|
Length (A) | Width (B) | Height (C) |
| 5 bbl | 48" | 48" | 76" |
| 7 bbl | 45" | 45" | 96" |
| 10 bbl | 48" | 48" | 144" |
Sleeved thermowell w/ PT100 RTD includedAnalog thermometer
Carbonation stone w/ 3/8" Ss Brewtech ball valve
Diaphragm pressure gauge
1.2 Bar PRVDedicated CIP arm w/ rotary spray ball
Volume sight-glass
Standard tap shank serving port
Serving pig tail based on desired serving pressure
Sleeved thermowell w/ PT100 RTD includedAnalog thermometer
Carbonation stone w/ 3/8" Ss Brewtech ball valve
Diaphragm pressure gauge
1.2 Bar PRVDedicated CIP arm w/ rotary spray ball
Volume sight-glass
Standard tap shank serving port
Serving pig tail based on desired serving pressure
|

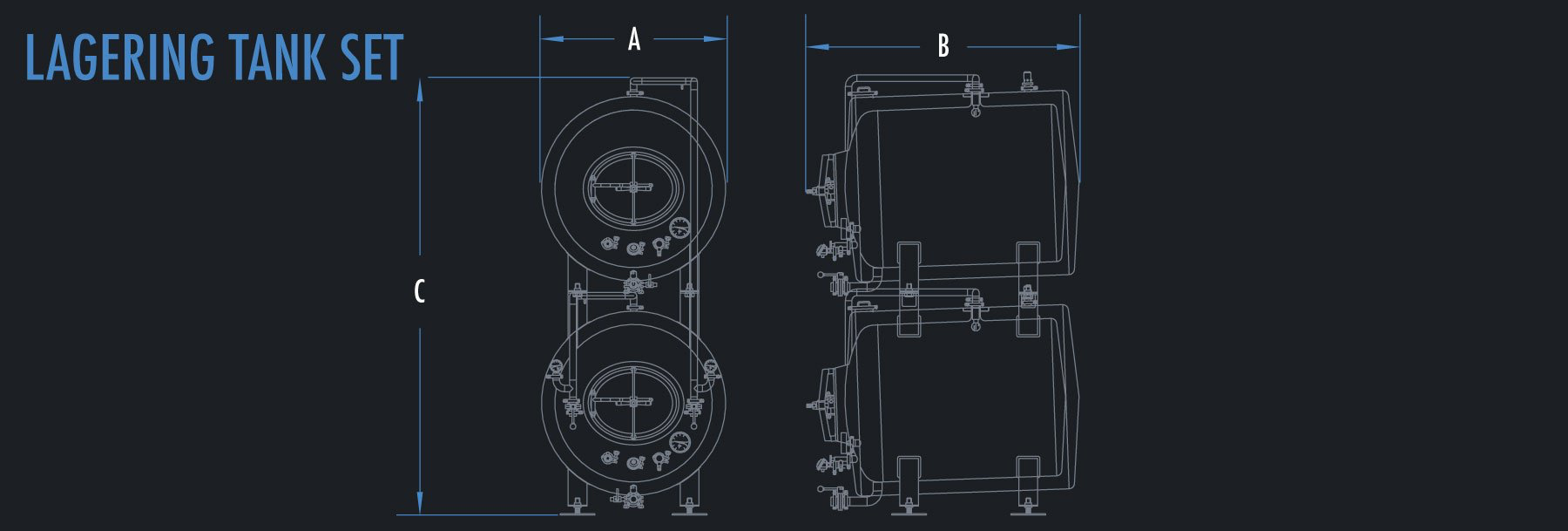

Size
|
Length (A) | Width (B) | Height (C) |
| 5 bbl | 44" | 68" | 108" |
| 7 bbl | 54" | 76" | 132" |
| 10 bbl | 63" | 91" | 145" |
Rotatable racking arm w/ DIN fitting
Sample port w/ Perlick style sample valve
Sleeved thermowell w/ PT100 RTD included
Analog thermometer
Carbonation stone w/ 3/8" Ss Brewtech ball valve
Diaphragm pressure gauge
1.2 Bar PRV4" TC dry hop port
Dedicated CIP arm w/ rotary spray ball
5º slope for improved sediment collection
Horizontal design allows for shorter lagering times
Stackable design decreases overall footprint
__________
All dimensions are for reference only and subject to change without notice
Rotatable racking arm w/ DIN fitting
Sample port w/ Perlick style sample valve
Sleeved thermowell w/ PT100 RTD included
Analog thermometer
Carbonation stone w/ 3/8" Ss Brewtech ball valve
Diaphragm pressure gauge
1.2 Bar PRV4" TC dry hop port
Dedicated CIP arm w/ rotary spray ball
5º slope for improved sediment collection
Horizontal design allows for shorter lagering times
Stackable design decreases overall footprint
__________
All dimensions are for reference only and subject to change without notice
