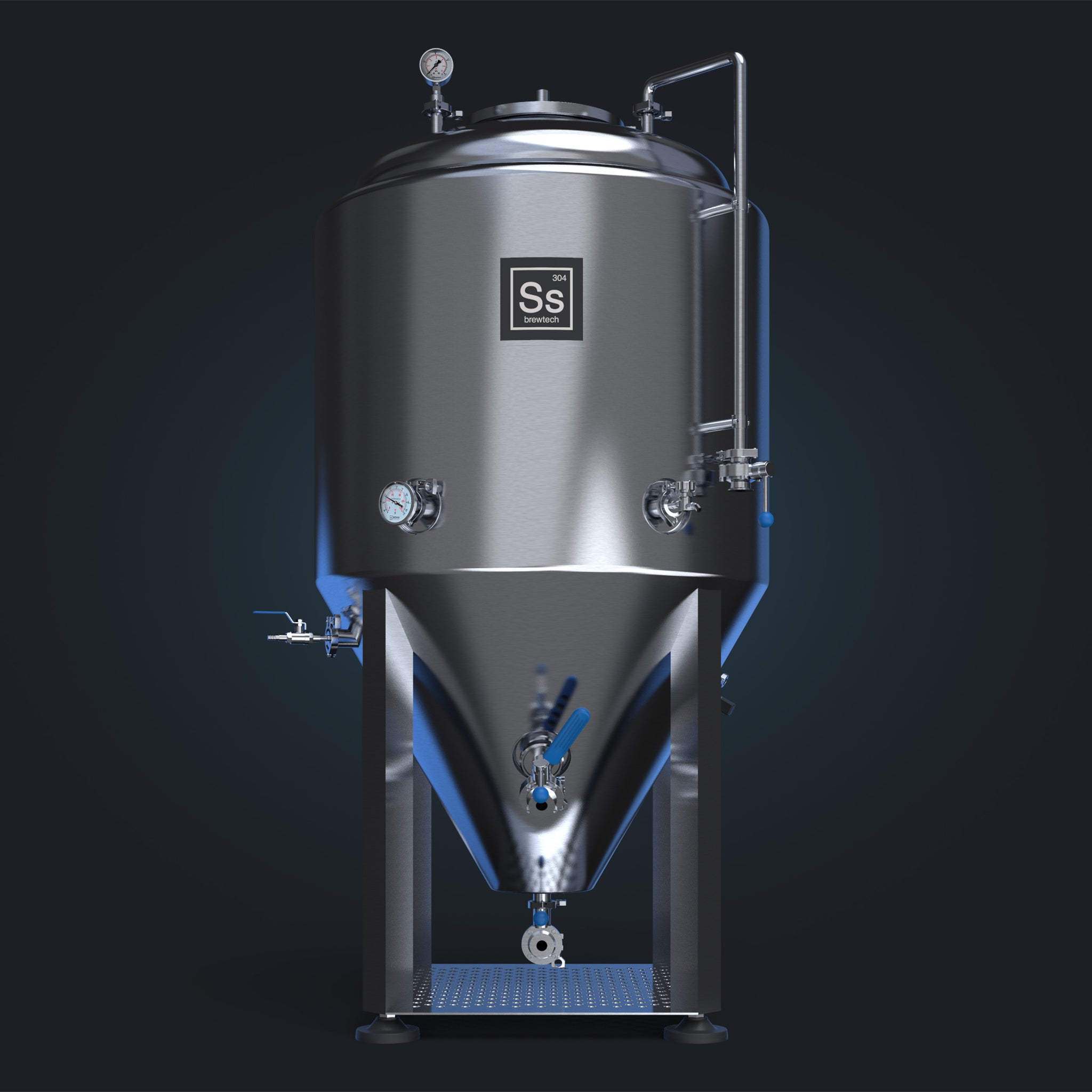

3.5 bbl | Jacketed Unitank

Pre-Sale | Units Expected to Ship Mid-December

Free LTL Shipping

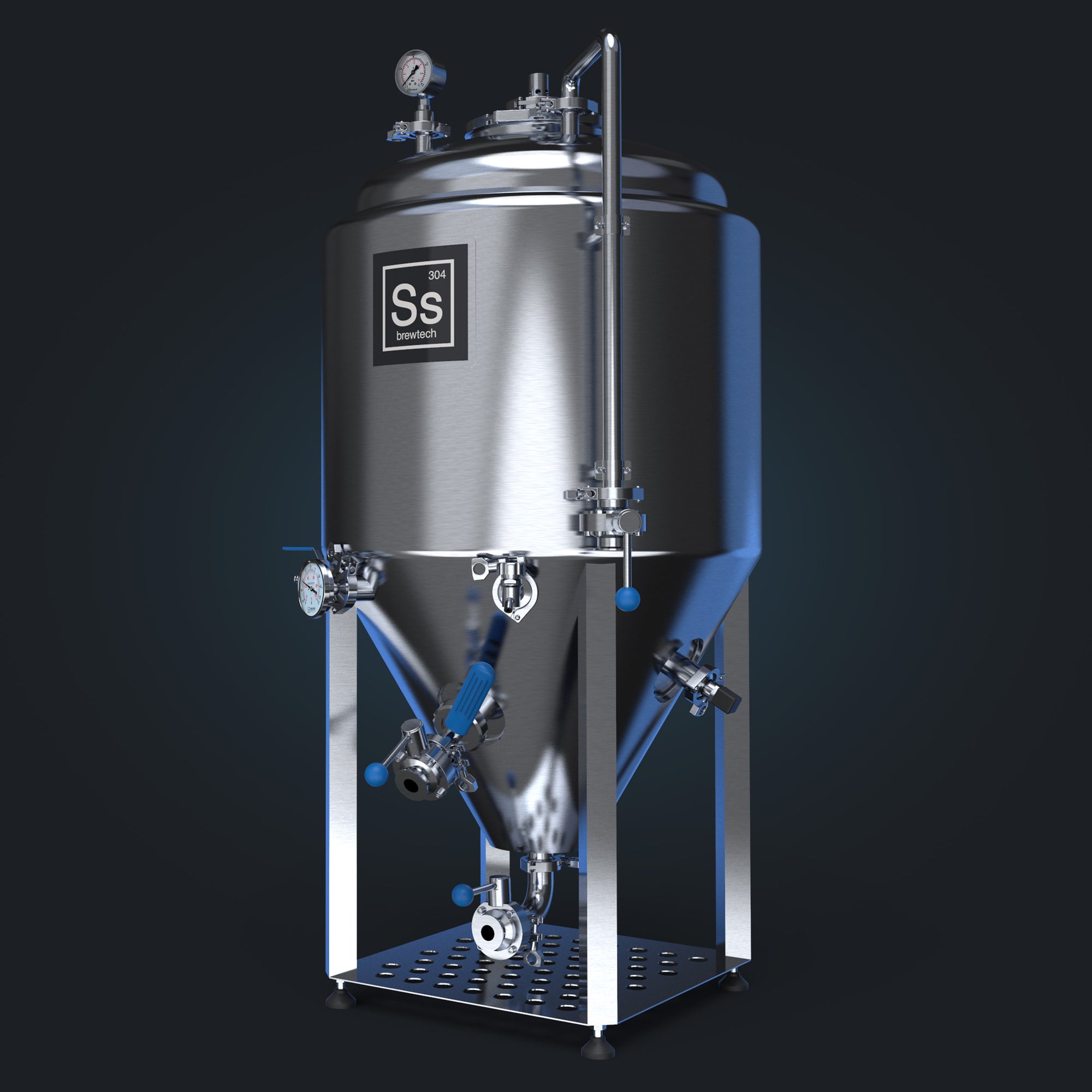

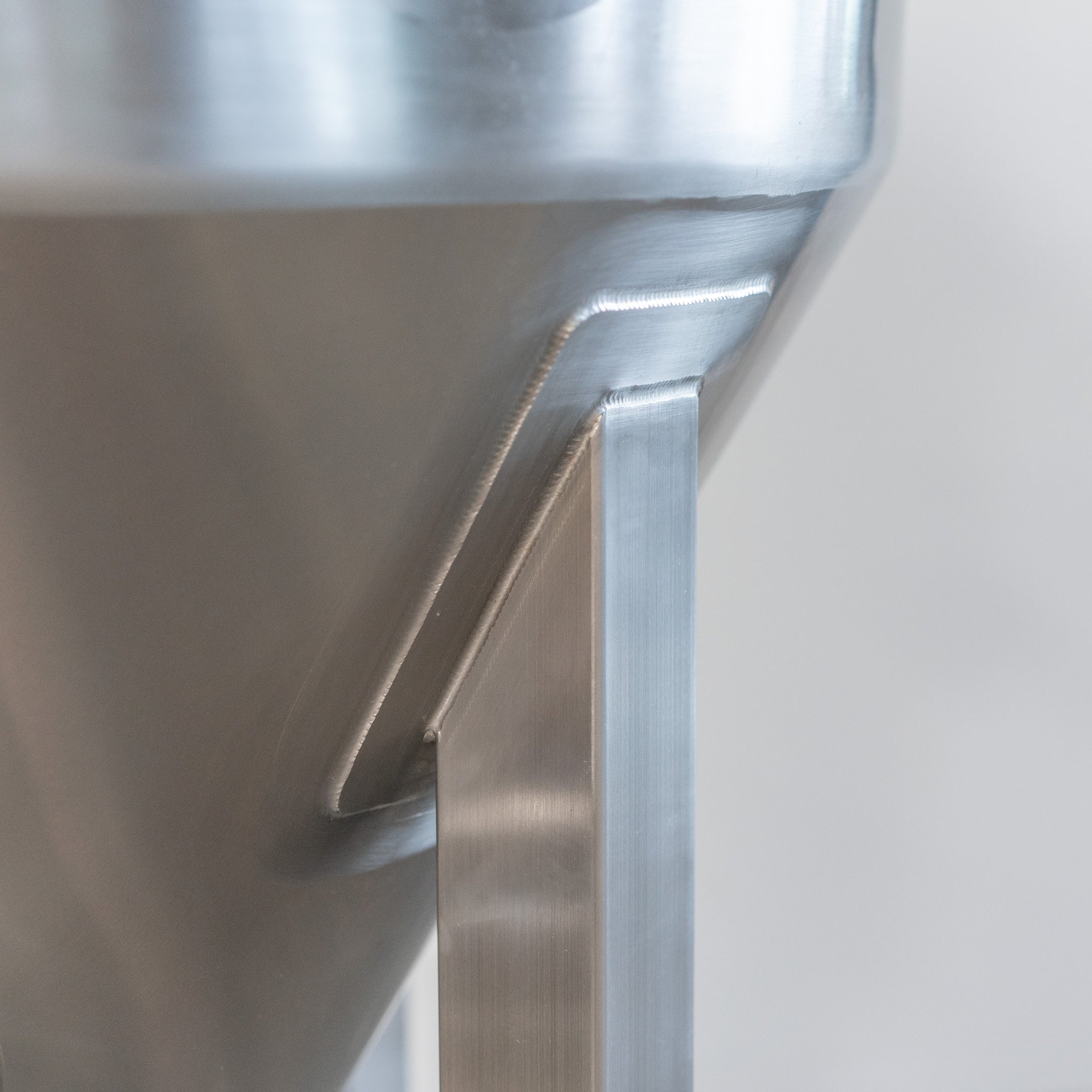

We set out to design our line of Jacketed Unitanks by taking the same robust material thicknesses, finishing standards, and glycol jacketing as our Pro Unitanks, then scale them down to popular pilot and nano brewery sizes.  It was also important that us that we borrow popular cues from our single wall Unitanks such as a lower stiffener plate, and square tube leg design.

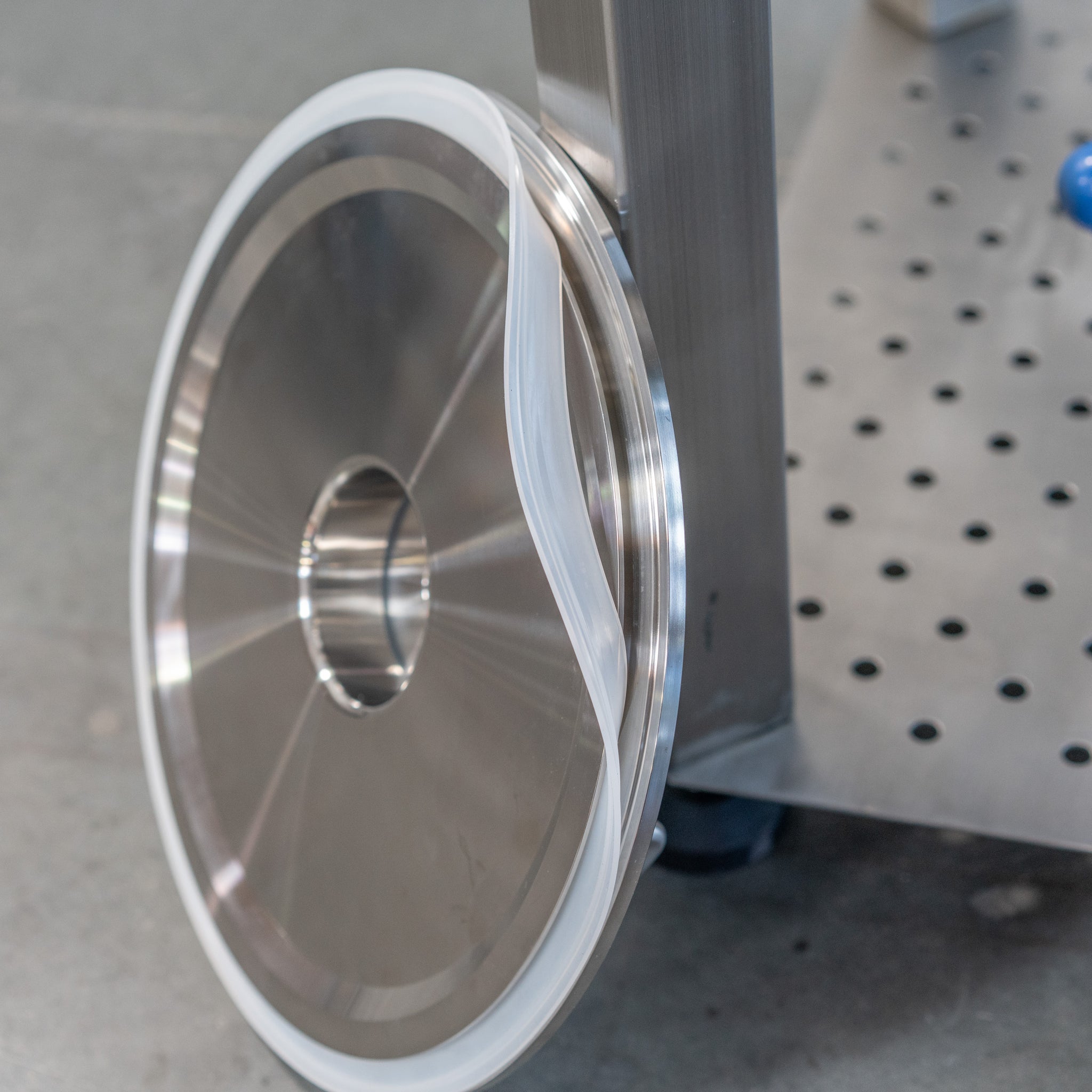

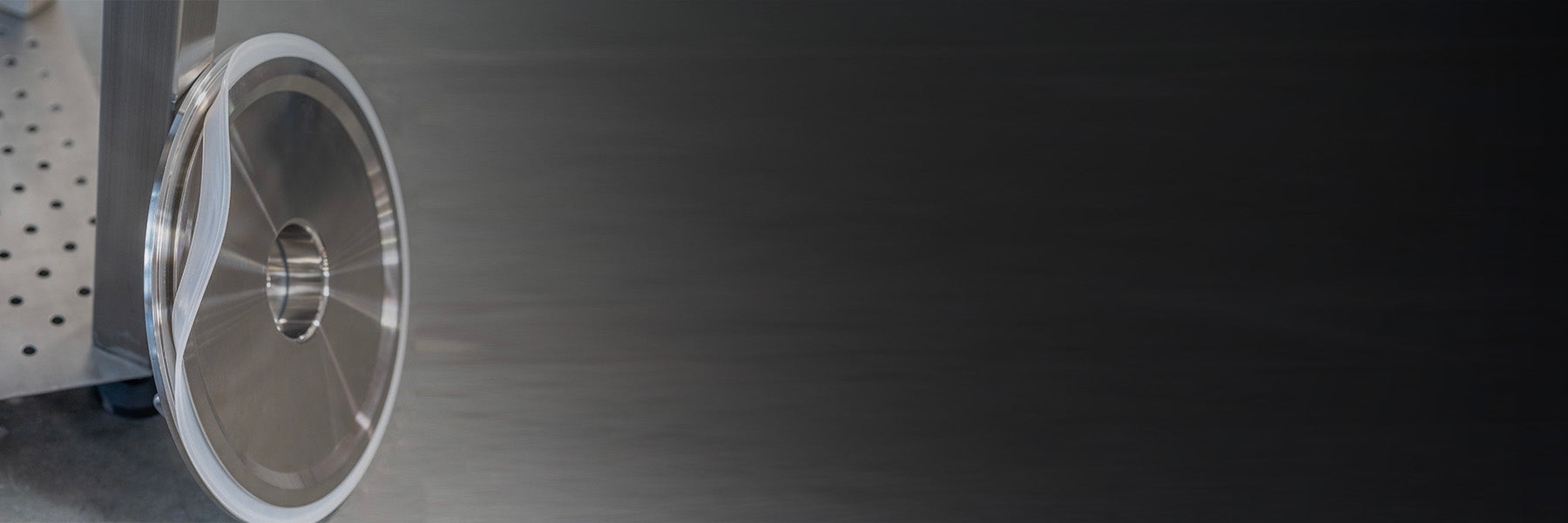

Finally, we carried over our popular zwickle sampling valve, DIN racking arm, sleeved thermowell port, and analog thermometer.  Then added a Pro carb stone along with a combination CIP and dry hoping port.  However, instead of incorporating a cumbersome off the shelf manway we decided to innovate on the familiar TC standard and develop our own proprietary TC lid and gasket system that prevents the gasket from inadvertently falling into the tank when installing and removing the lid cap.  The line of Jacketed Unitanks strikes the perfect balance of Pro performance in a smaller package.

ASME Certified Jacketed Unitanks available upon request |

Cooling options for Ss Branded Glycol Chillers
Cooling options for Pressurized Glycol Loops on Commercial Chillers

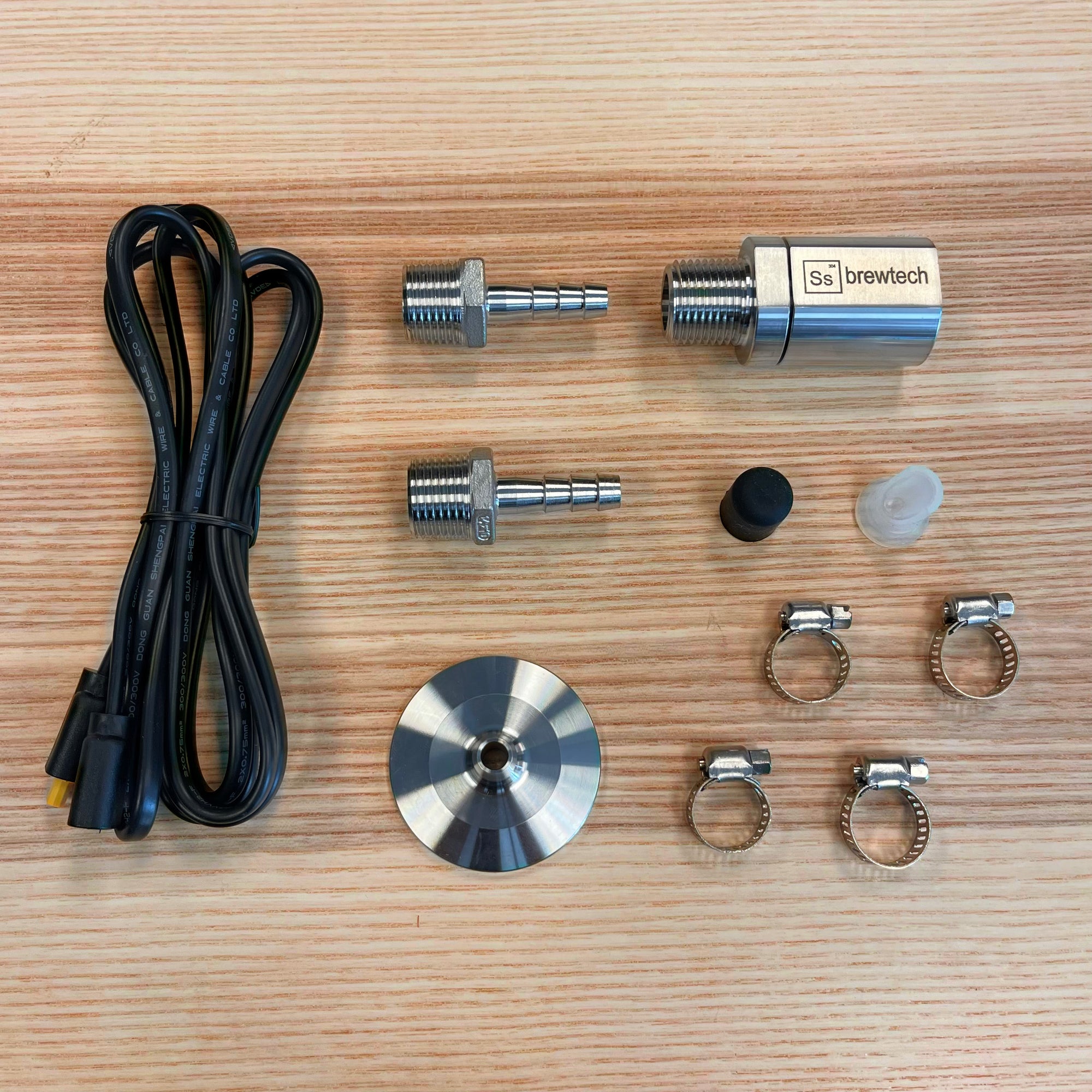

  • ½" FTSs Pro  — Designed to be paired with pressurized-loop (Non-Ss Brewtech) commercial glycol systems.

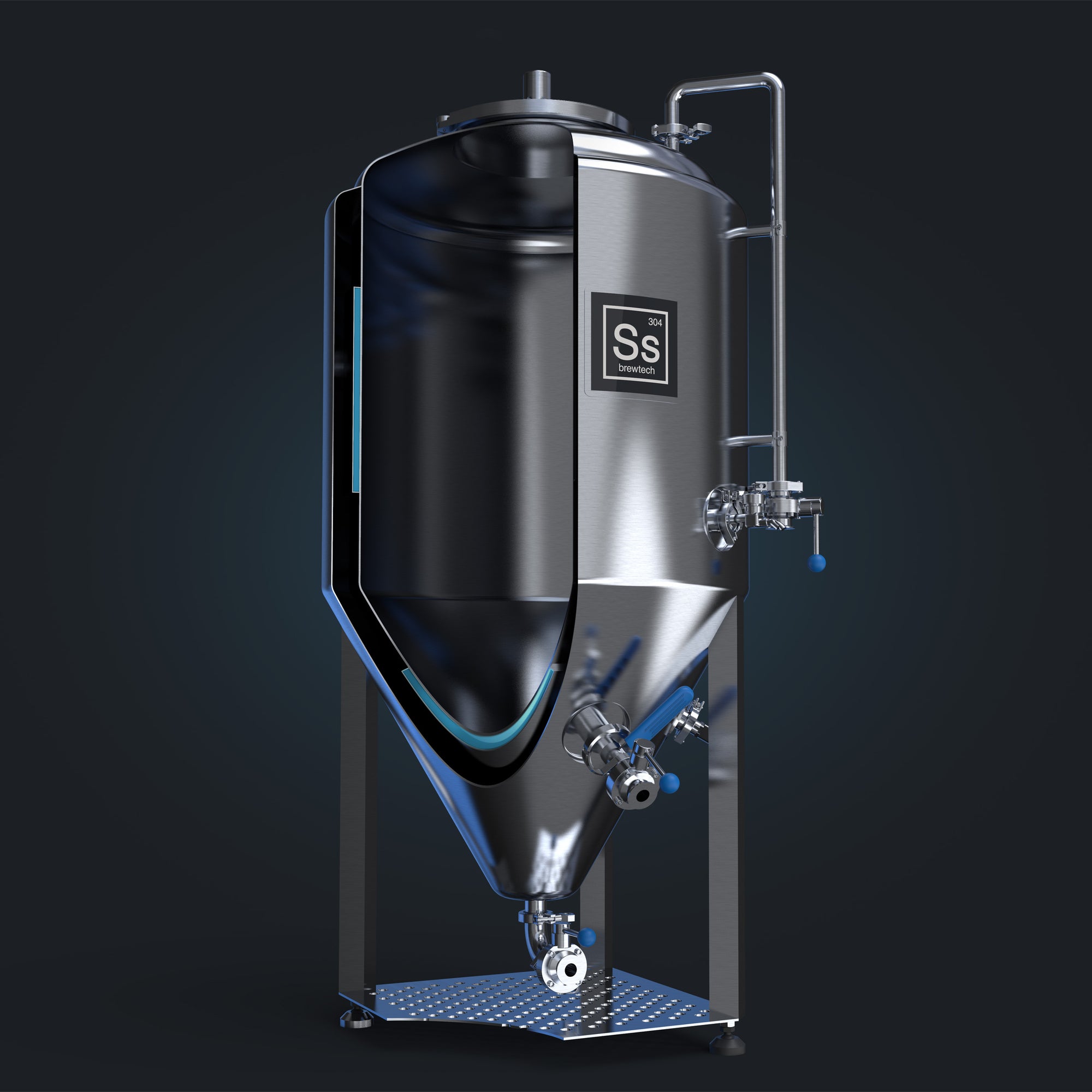

  • Pro Construction: 3 mm inner wall, 2 mm dimpled glycol jacket, 1.5 mm outer wall
  • Cone and body glycol jackets

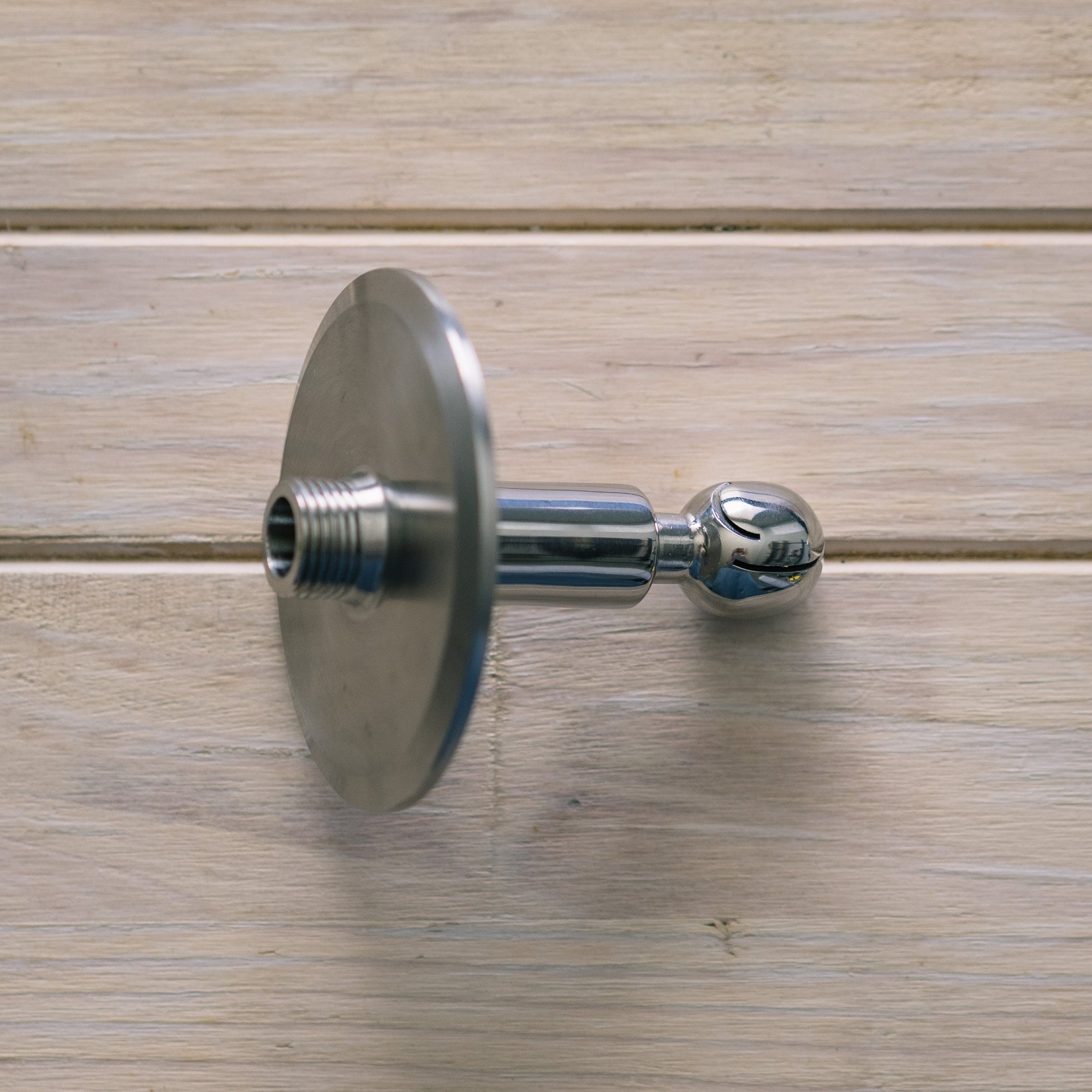

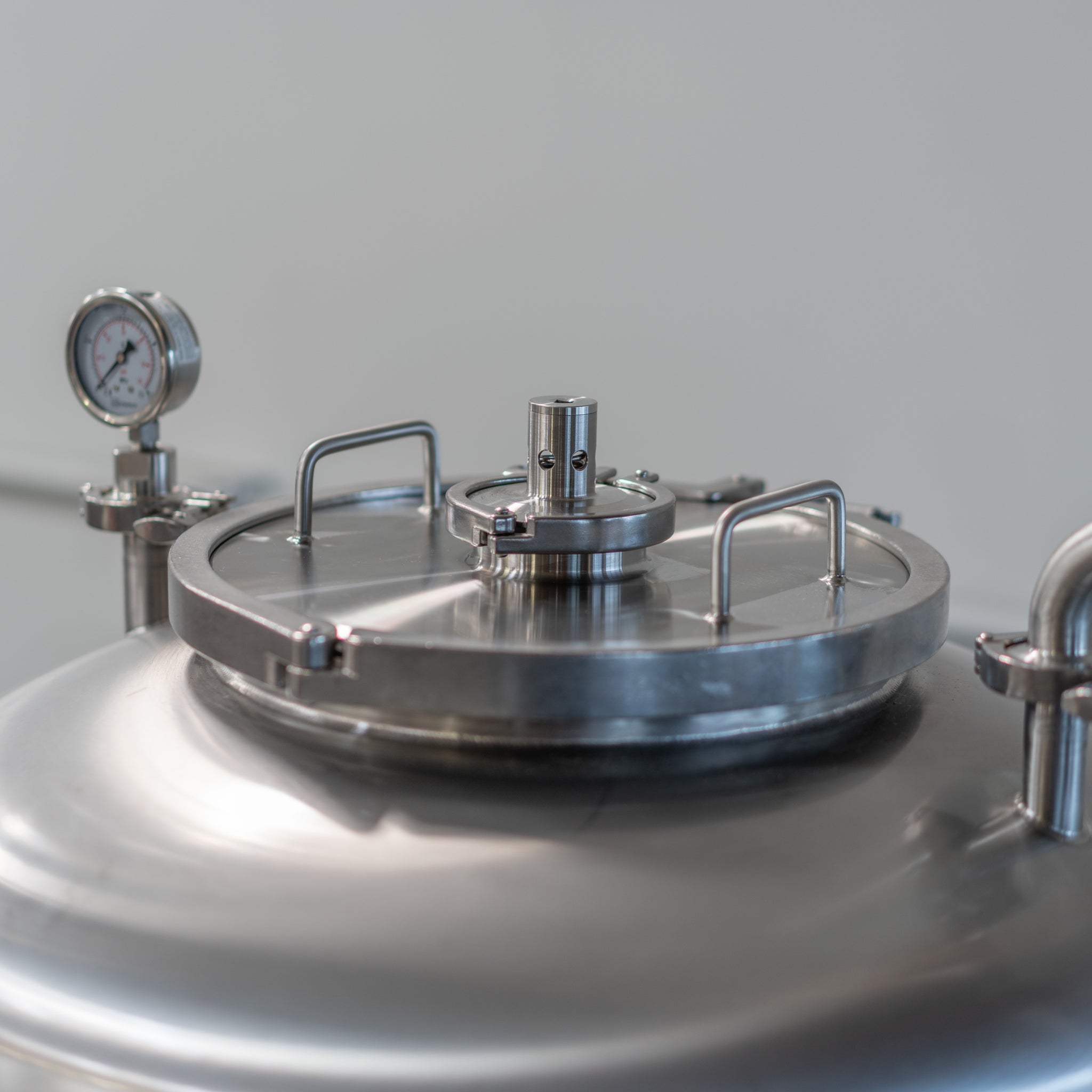

  • Lid cap includes combination 3" dry hop port and 17 PSI PRV

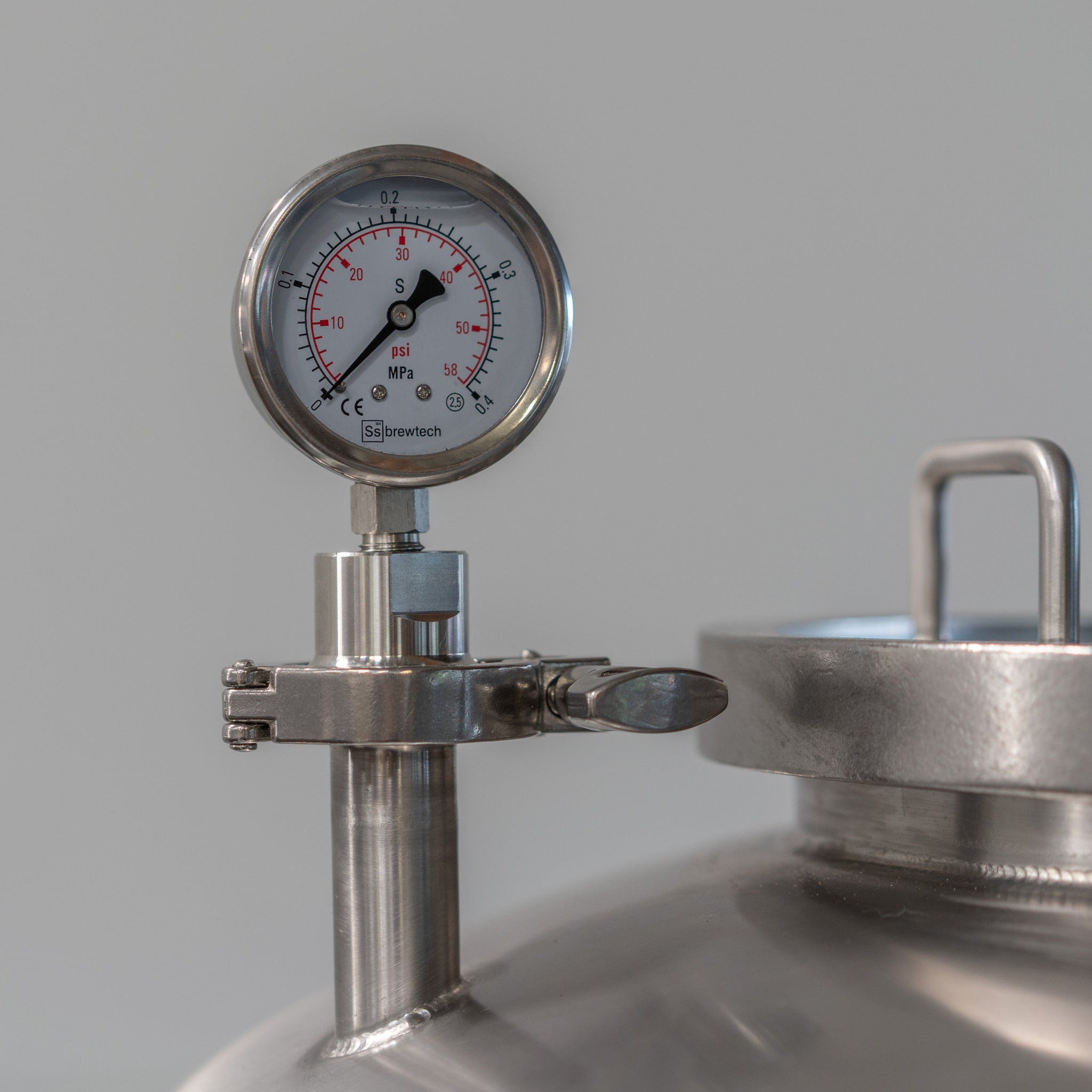

  • Blow off tube and sanitary pressure gauge

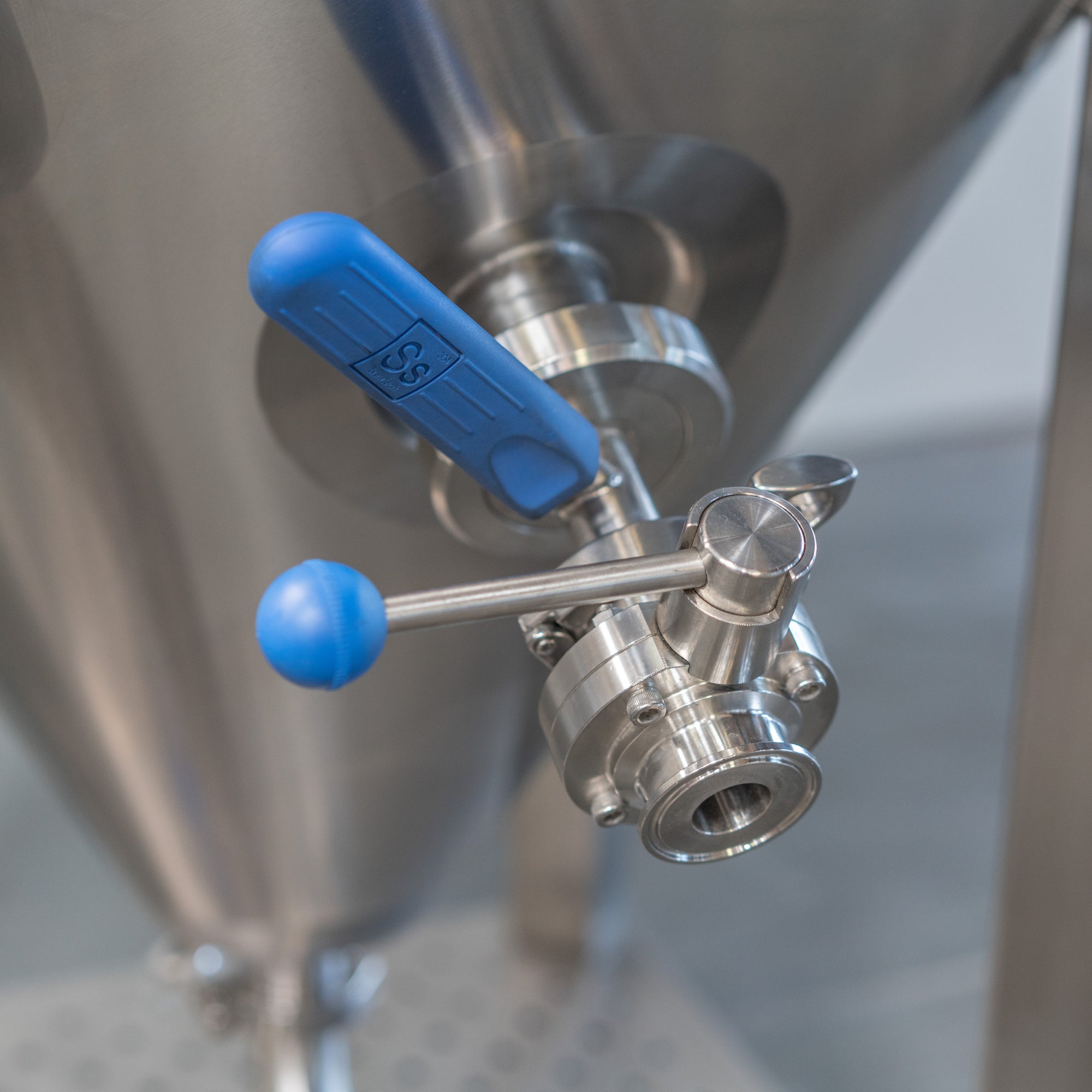

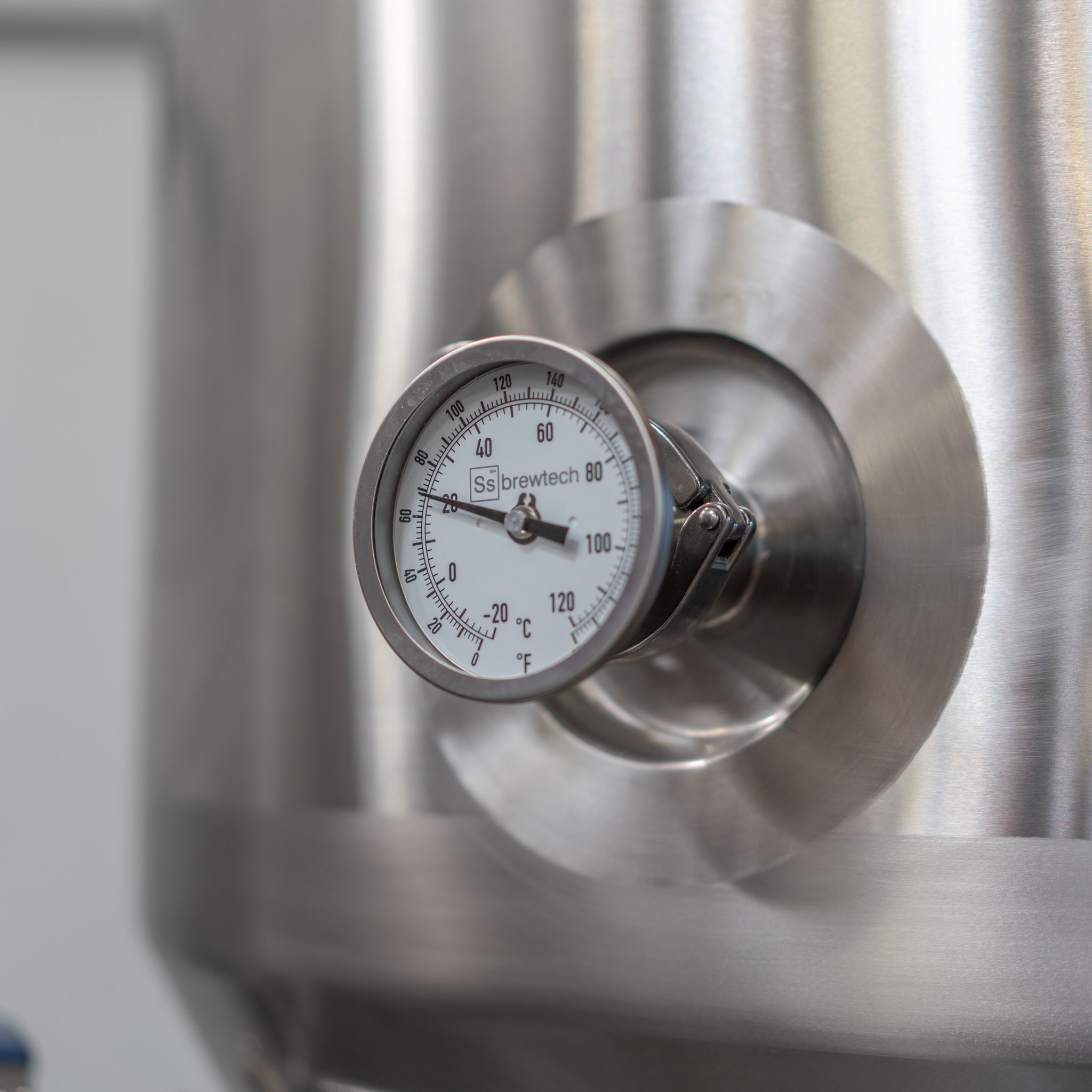

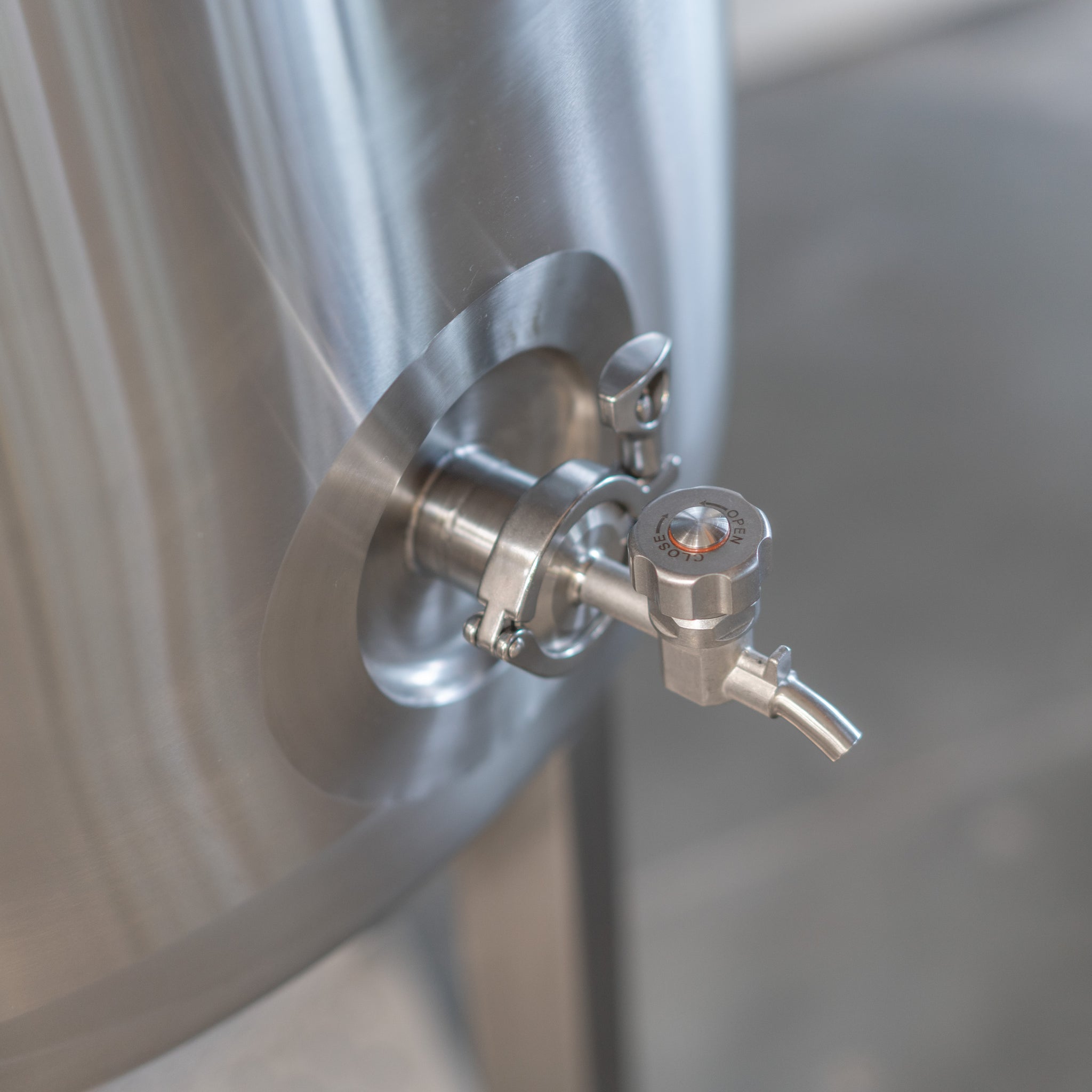

  • Zwickle Sampling Valve and analog thermometer

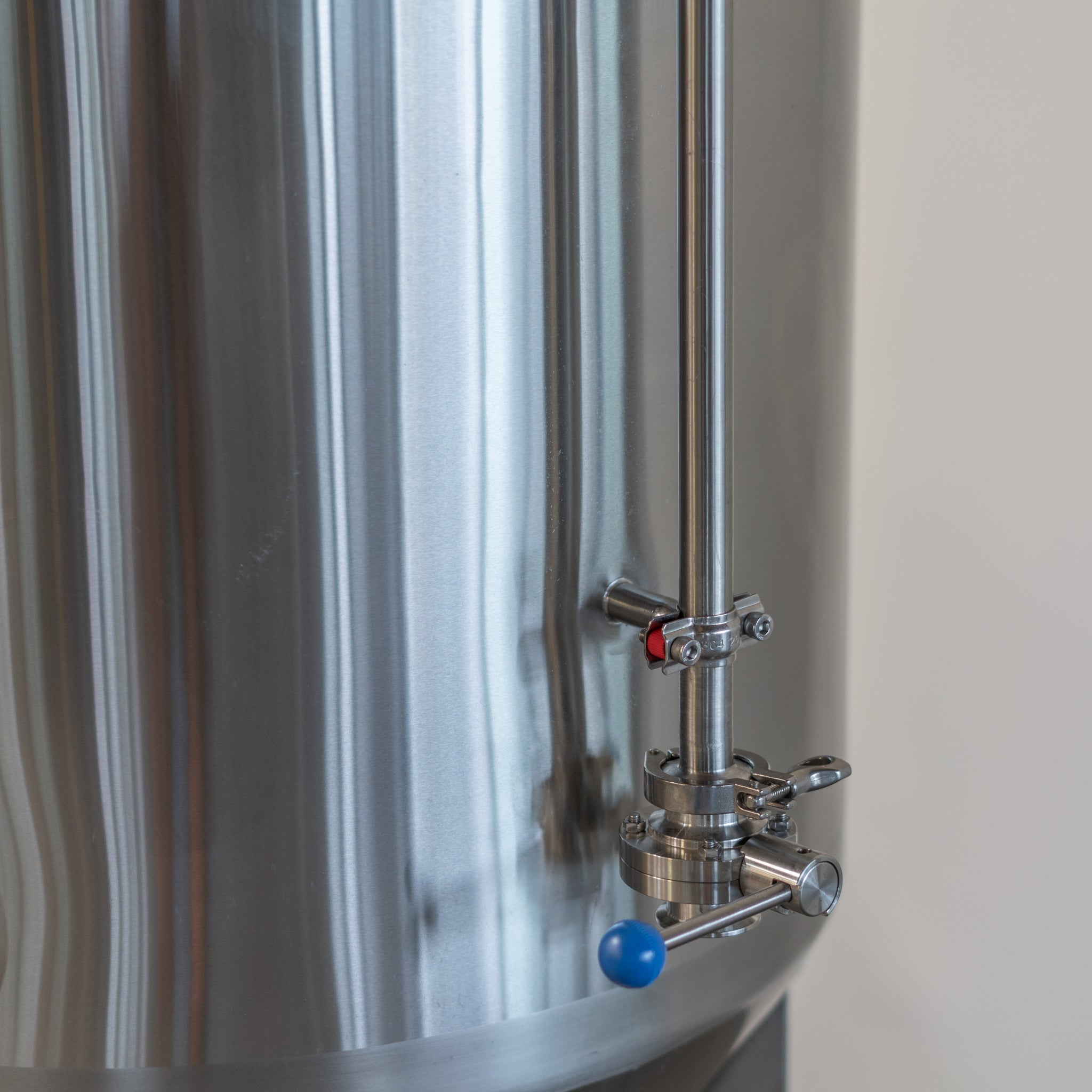

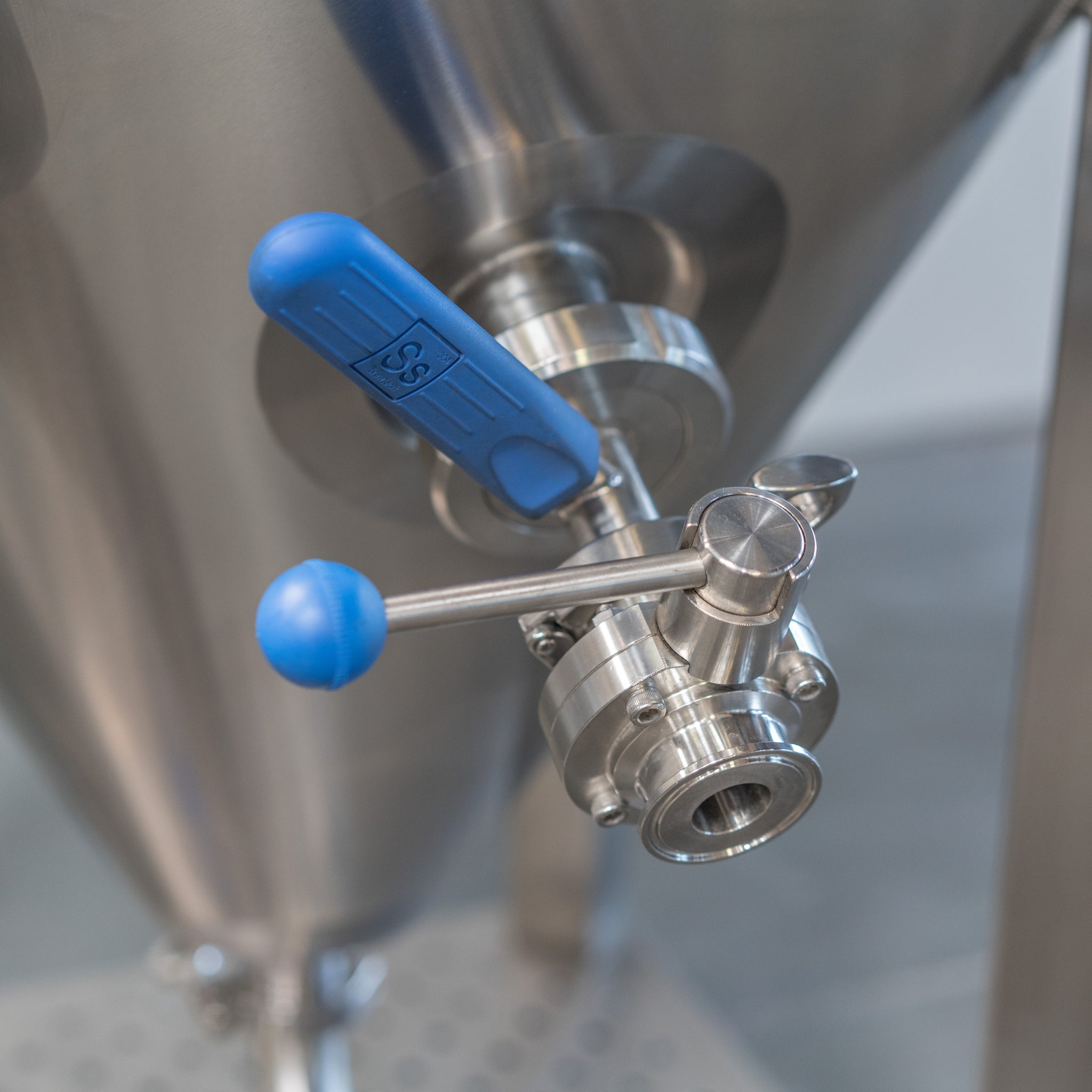

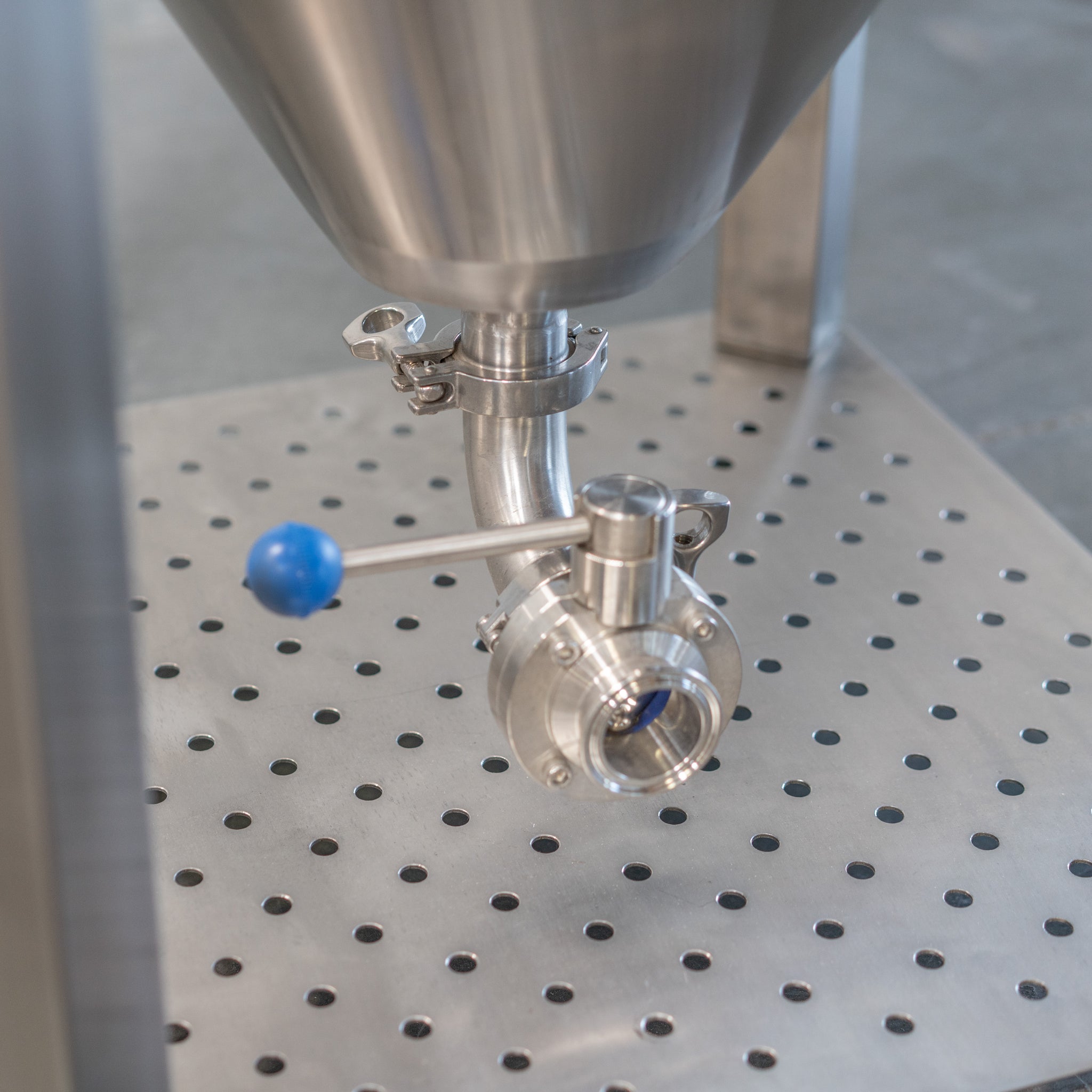

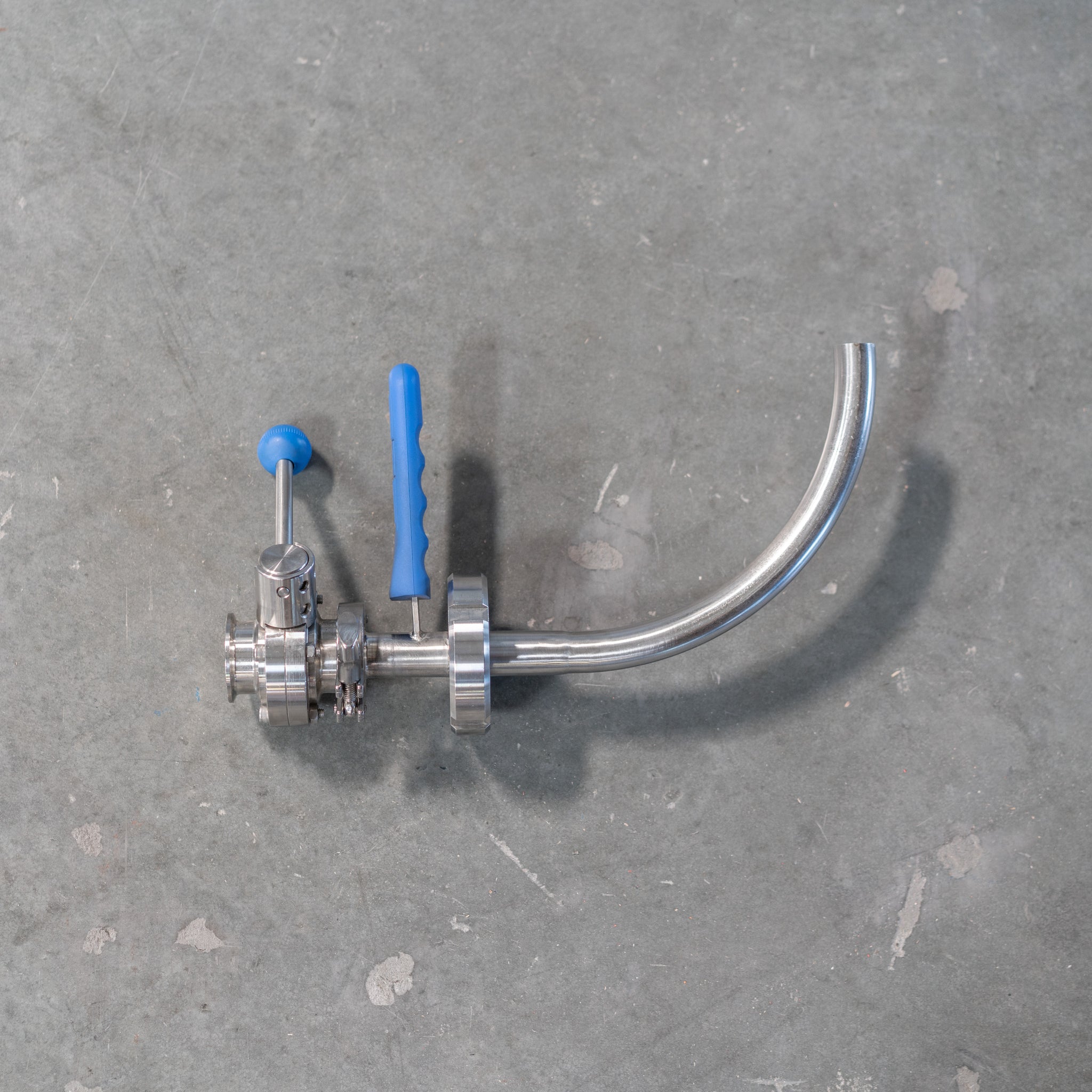

  • 1.5" TC rotatable racking arm with DIN nut, 2" lower dump port
  • Discrete cylinder and cone jackets allow for half batching
  • 1/2" NPT glycol inlet and outlet ports with internal jacket tie

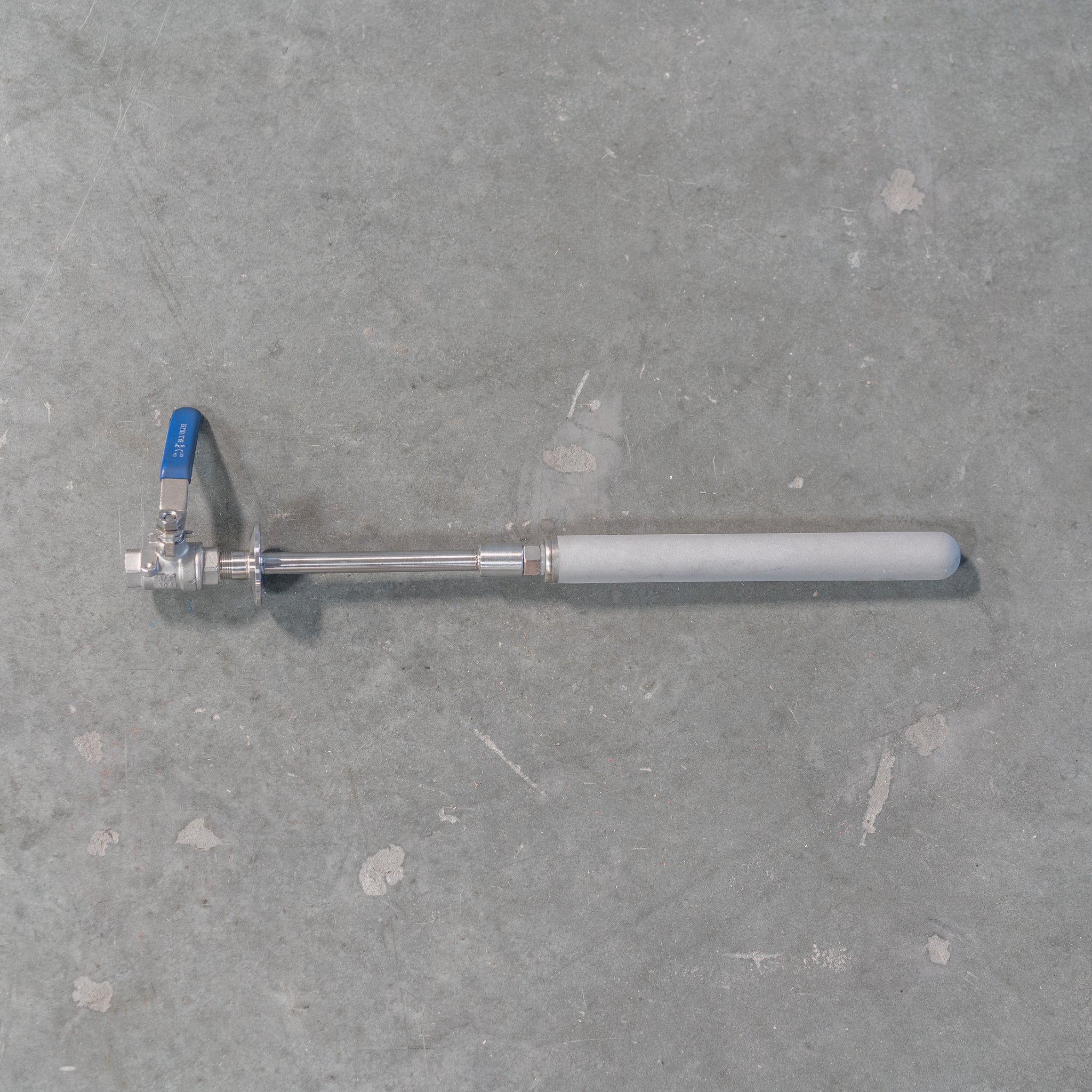

  • 316 SS carbstone with valve

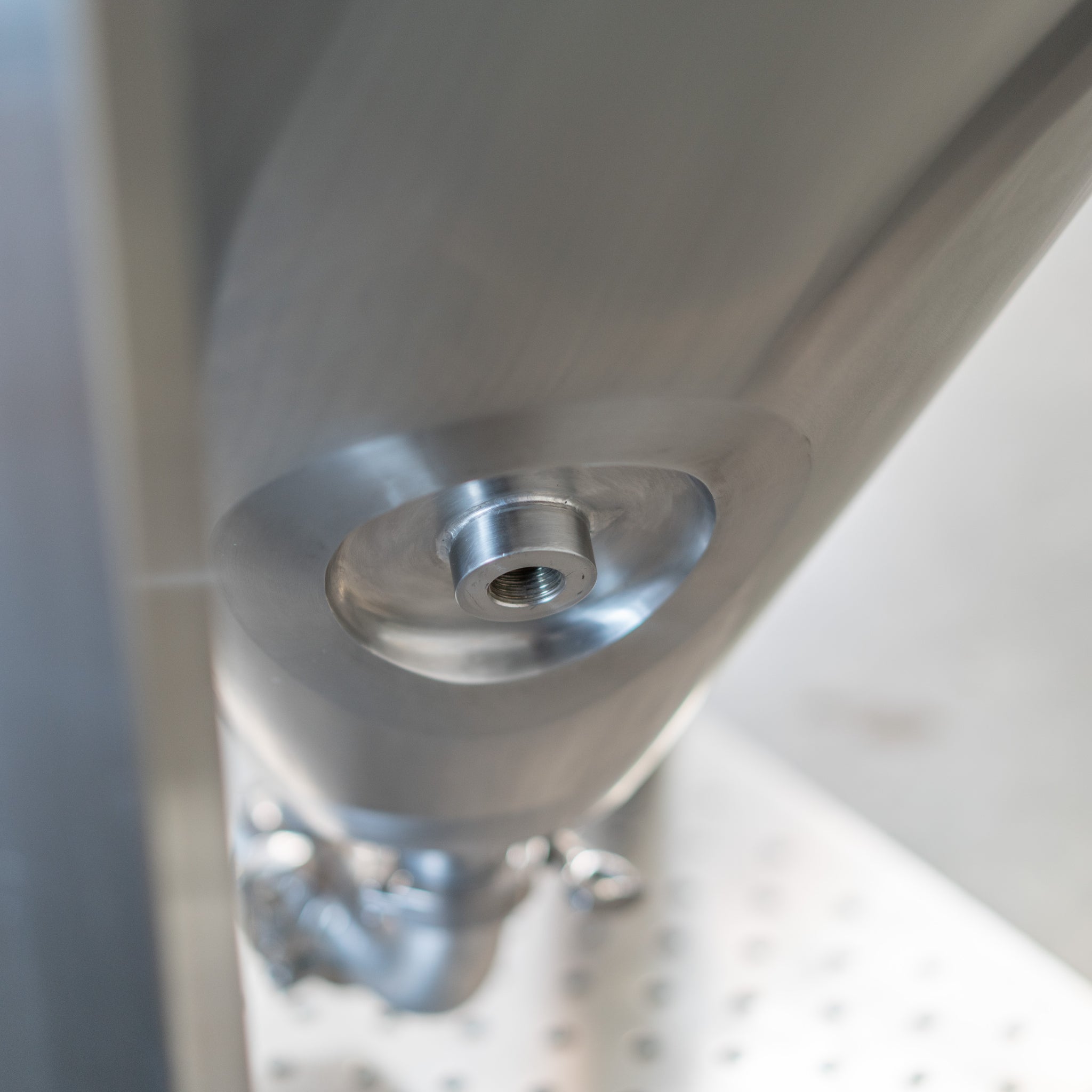

  • Cone mounted sleeved RTD port with probe included
  • 4 MM lower stiffener plate with adjustable feet

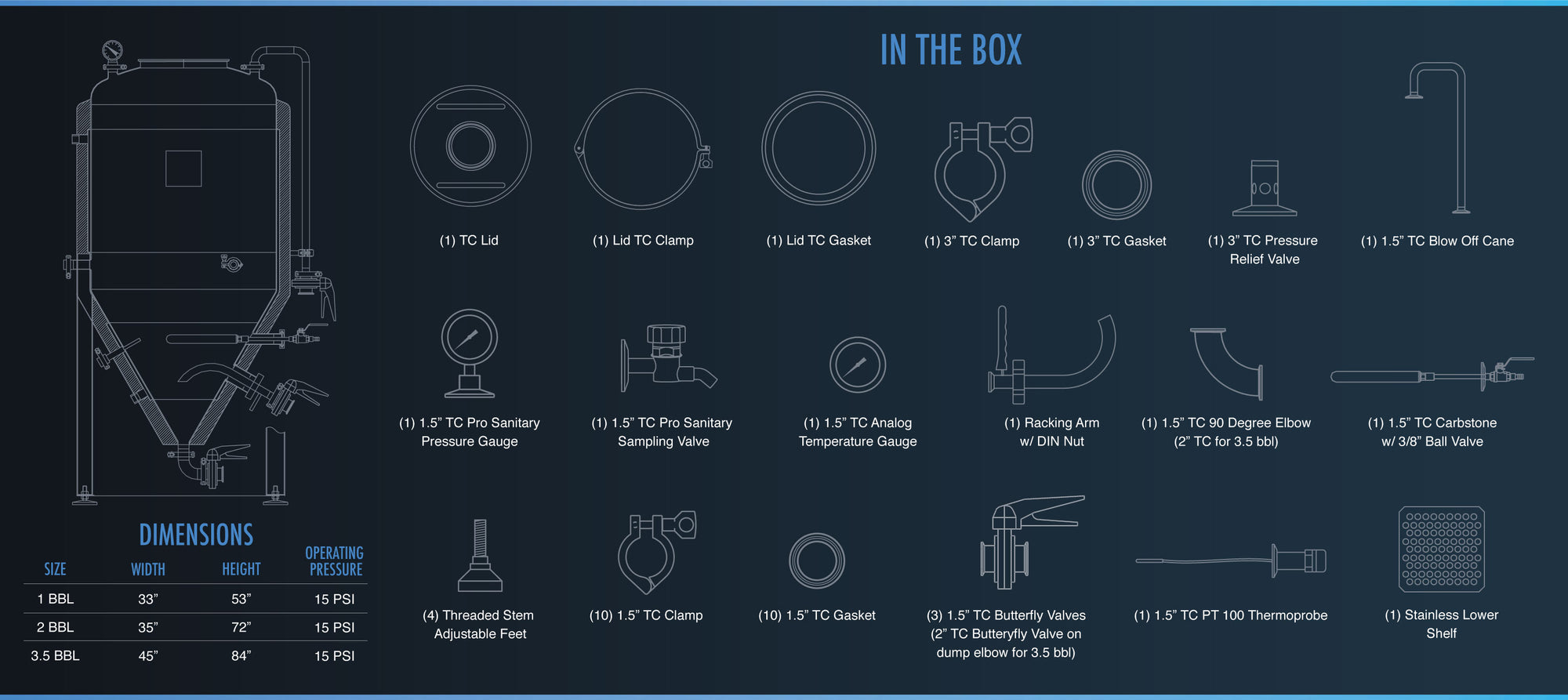

  • 45" Wide x 80" Height
    SKU: FV035T-01
