Designing every piece of our electric brewing equipment from scratch has enabled us to introduce a new level of process control, flexibility, and performance. Every detail has been carefully thought through and refined.

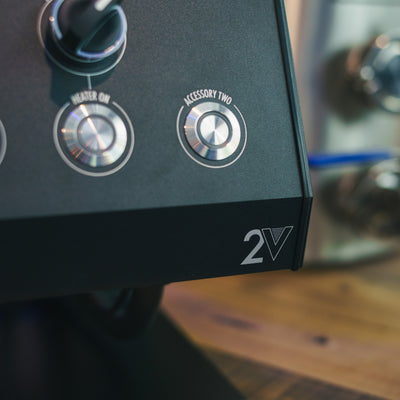

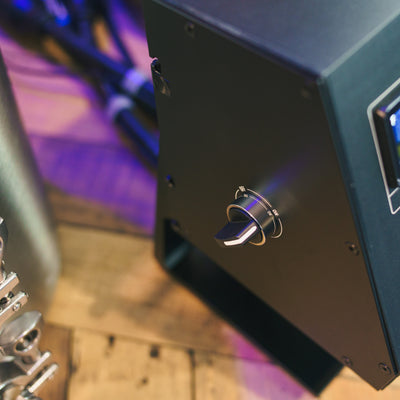

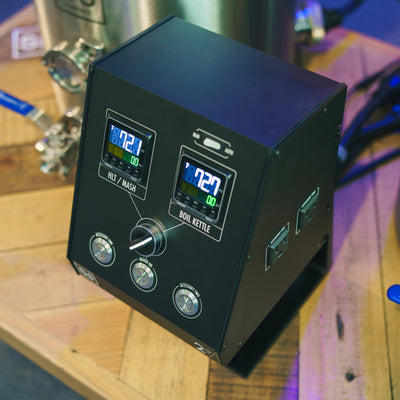

Beginning with control, our eControllers include a fully proportional PID output, which doesn't rely on SSR's or high speed switching to modulate heat. Instead, voltage is modulated, this means element wattage is proportional, and can be fine-tuned from 0-100% for holding temps steady during a mash rest, or dialing in a perfect rolling boil. The eController quickly finds equilibrium with environmental heat loss characteristics, and can maintain a high degree of accuracy.

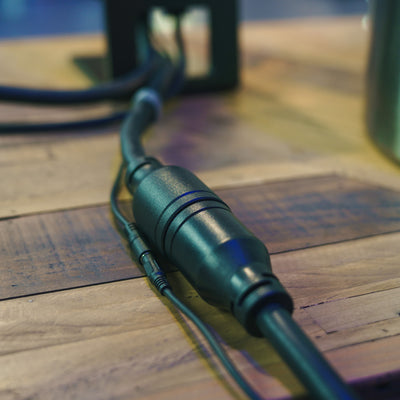

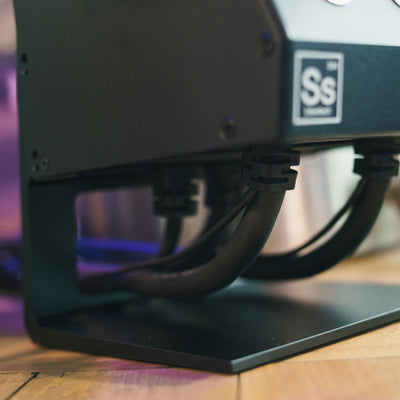

Next, we thought about the best way to maintain a high level of flexibility. One such method was using a common interconnect throughout our line of eControllers and eKettles, in an attempt to minimize proprietary connectors, and leverage trusted UL approved connector types. The modularity of our eBrewing system allows a user to splice an HLT or Boil Kettle into their system for instance, without having to purchase an entirely new 3 vessel brewhouse.

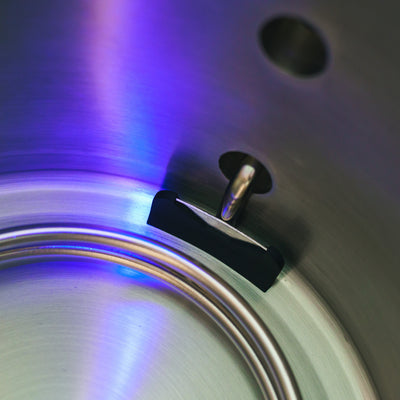

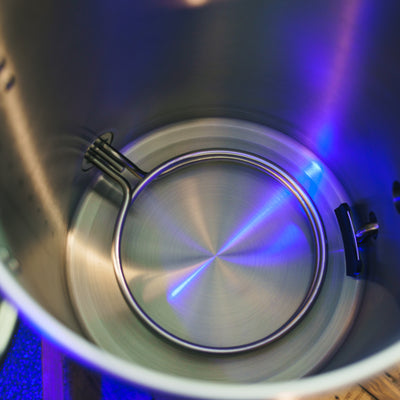

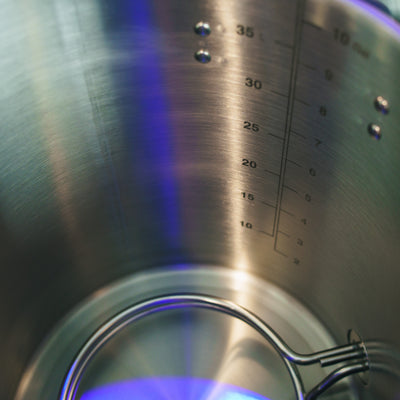

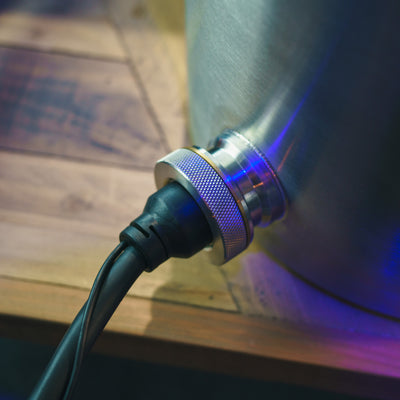

In addition, flexibility is realized through the use of our custom-designed element and eKettle element port, which allows for easy removal of the element for cleaning. In addition, we didn't settle for a common, off the shelf straight or ripple element. Instead, we designed a low watt density halo element, specifically sized to the corresponding kettle volume. This design is better suited to distributing heat evenly throughout the kettle, in addition to fostering an effective whirlpool and trub cone formation. Crafted from Incoloy 800 alloy, our element carries a higher resistance to heat and oxidation than standard stainless.

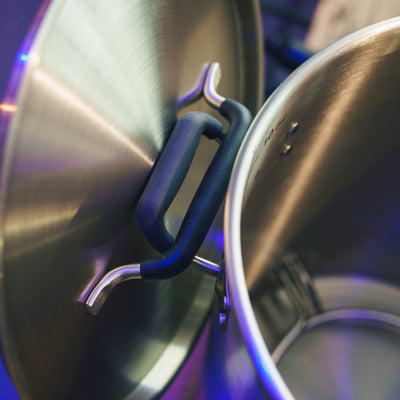

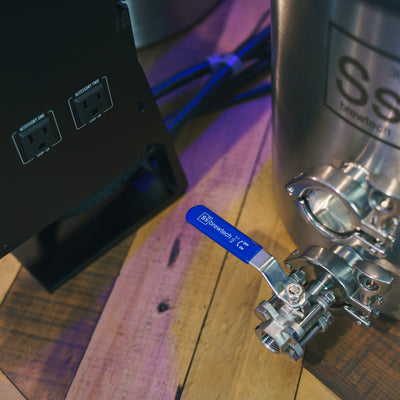

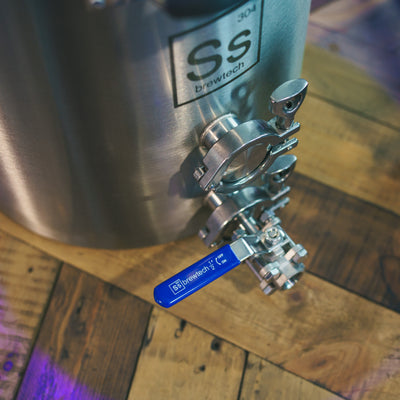

Lastly, performance is deeply important to everything we design. We sized the element and controller in both 10 and 20 gallon sizes to maximize a standard 240 VAC, 30 amp residential circuit. As a result ramp times are quick, which work to shorten the brew day. We also wanted to blend some of our latest product enhancements alongside some of our classic tech. So we decided on a kettle with fully welded TC fittings, alongside our venerable trub dam, which is now paired with a TC ball valve. Even small aesthetic details were not overlooked, such as a front to back handle orientation for a more compact horizontal brewhouse layout. Or integrating a PT100 temperature probe into the heating element base, which alleviates the need for a dedicated thermowell port.

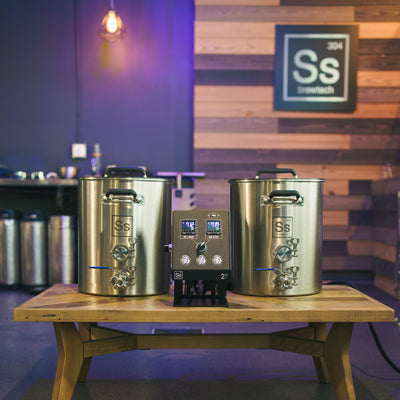

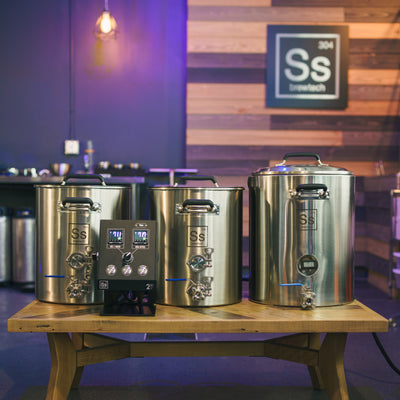

For the 2V eBrewing system, we are combining an eController 2V along with a pair of eKettles (one as an HLT and one as a Boil Kettle). This system can also be optioned with our popular InfuSsion Mash Tun to complete your setup.
(1) eController 2V
(2) eKettles with Elements
*Optional (1) Gallon InfuSsion Mash Tun
