eBrewing | RIMS

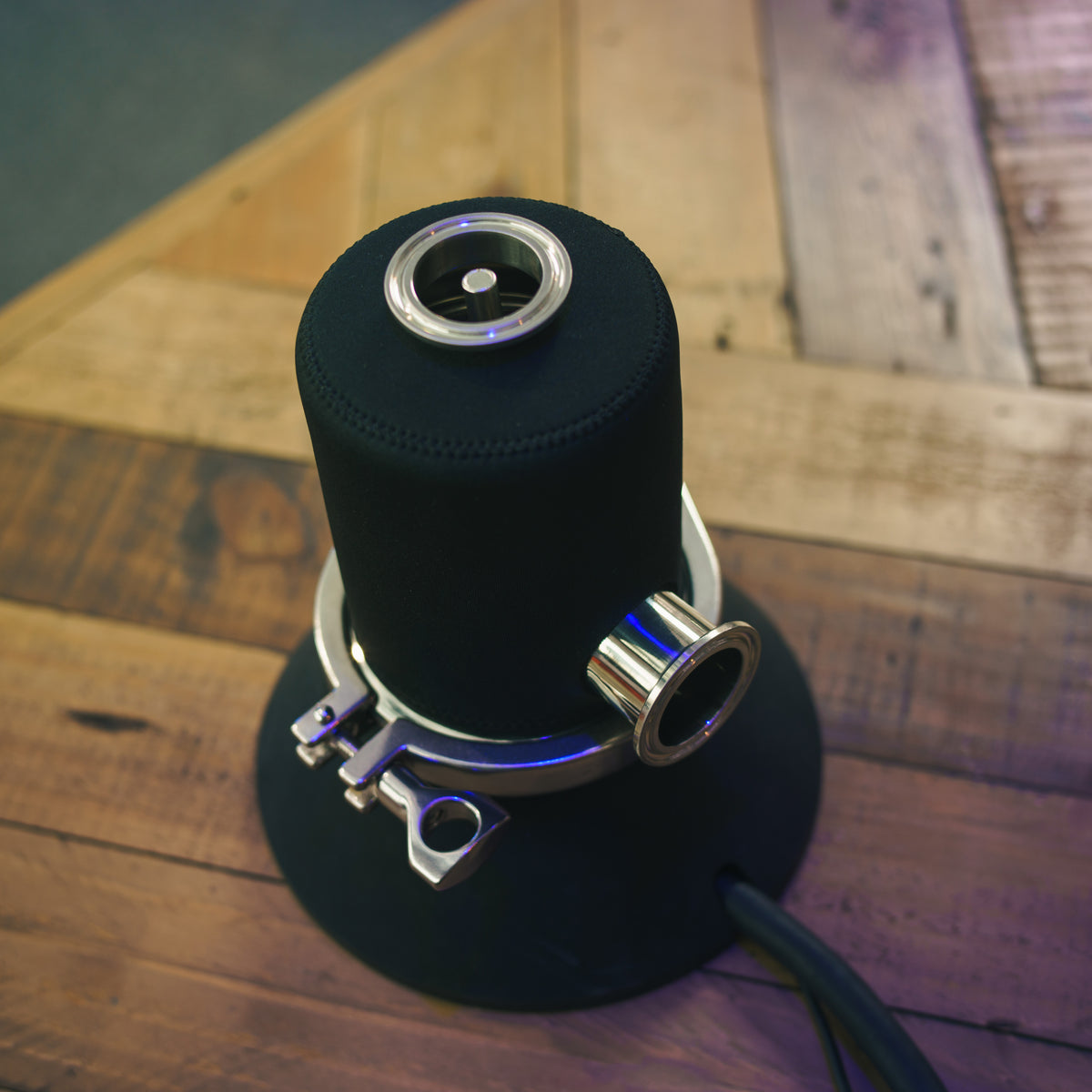

Our Recirculating InfuSsion Mash System (RIMS) features a 3500w Incoloy 800 helical element with a thermoprobe integrated into the base which is designed to read wort temperature as it leaves the RIMS housing.  When used with an InfuSsion Mash Tun, the system is designed to provide the brewer the temperature gradient between mash and recirculating wort, allowing the perfect pump speed to be dialed in.

When used with an Ss Brewtech eController, the RIMS element can be fully modulated, which can prevent scorching and provide another layer of heat input and control.  The RIMs kit includes a fully welded housing with TC connections, silicone base, and neoprene insulating jacket.  For stabilization and control in a multi-step mash process there is simply not a better system on the market.

Connectivity was an important consideration for our eBrewing Systems, we wanted the flexibility and familiarity of a plug that could be adapted to an existing customer setup, and the reliability of a UL approved connector type.  For the 240VAC element connector, we settled on the common NEMA L6-30 standard, which is a 3-wire twist-lock plug type, capable of delivering 30 amps of current.  Finally, for the PT100 temperature probes we opted for the 3.5 mm mini jack connector standard, commonly used for headphones, which is both durable and easy to use.


  • 3500w Incoloy 800 Helical Element w/ integrated thermoprobe
  • Sanitary TC Connections
  • Neoprene Insulation Jacket
  • NEMA L6-30 Plug
  • 240VAC
SKU: SSRIMTUBE
