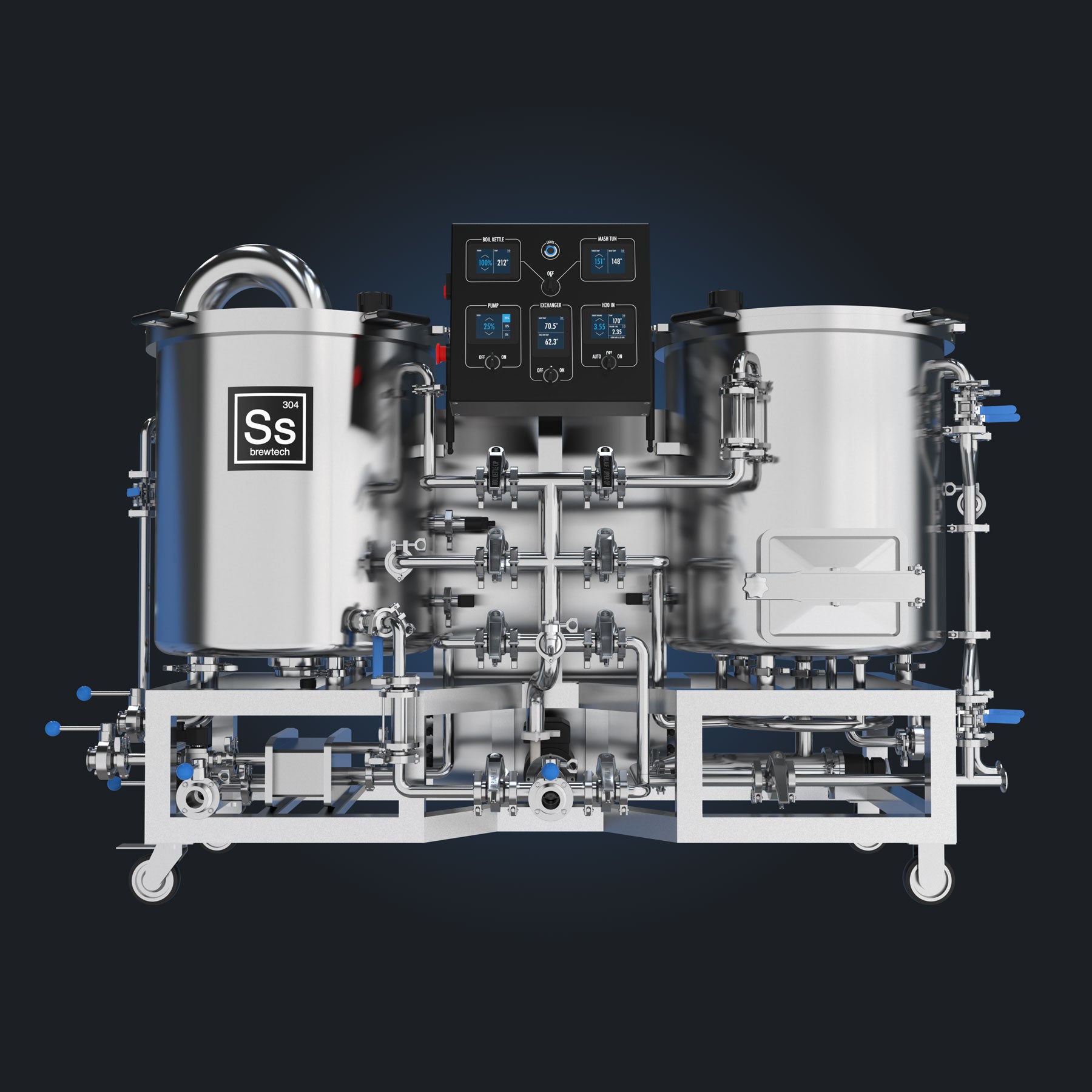

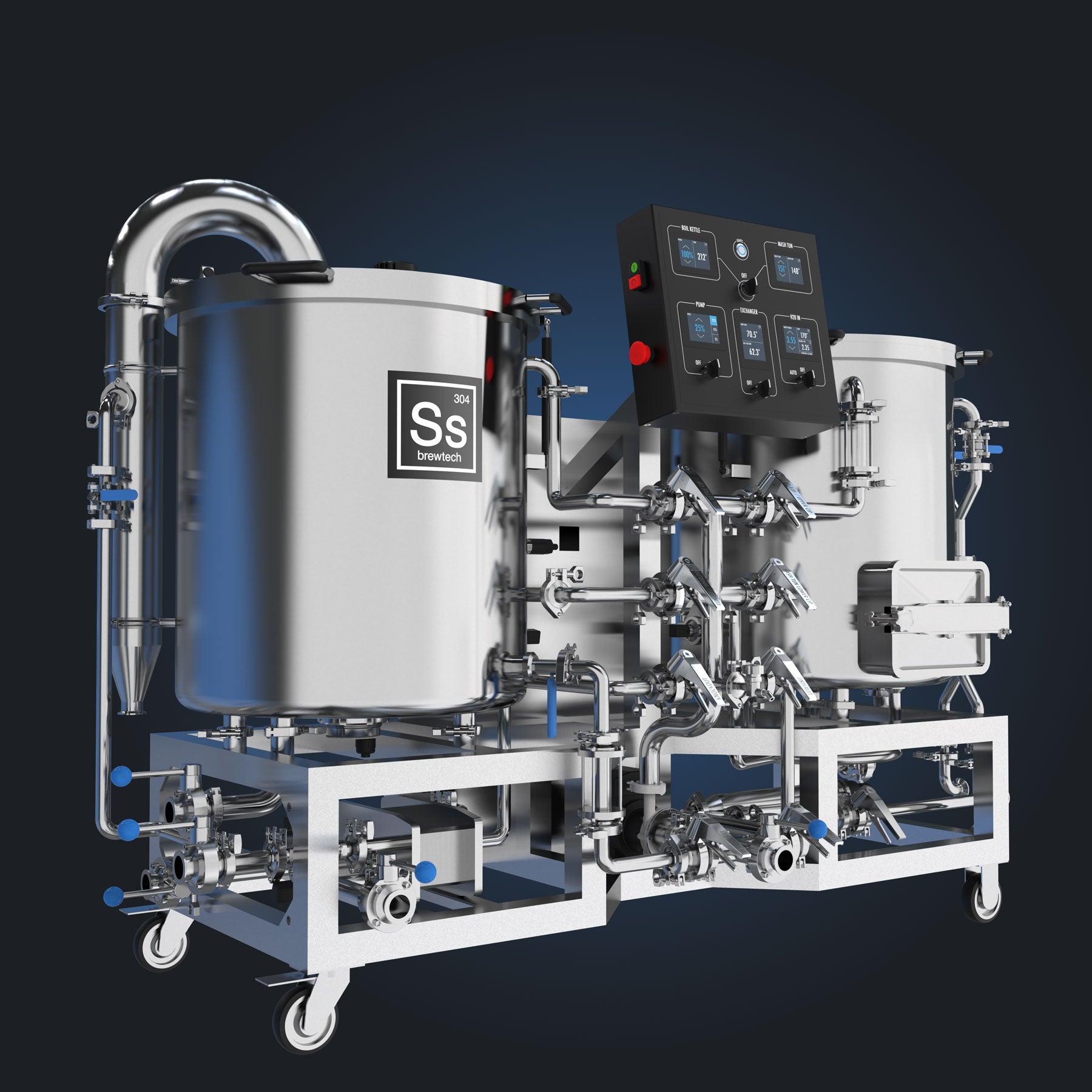

1 bbl | Electric Brewhouse

 $16,999 Total Price | $500 Deposit Due Today

Brewhouses ship after final payment, testing, and crating


240v Single Phase - 60 amp Dedicated Circuit - Typically found in residential and light commercial buildings.

Please check with your utility provider to verify the type of electrical service available at your location.

SKU: DEPOSIT1-2V

  • 2.0 Internal calandria around boil heating element

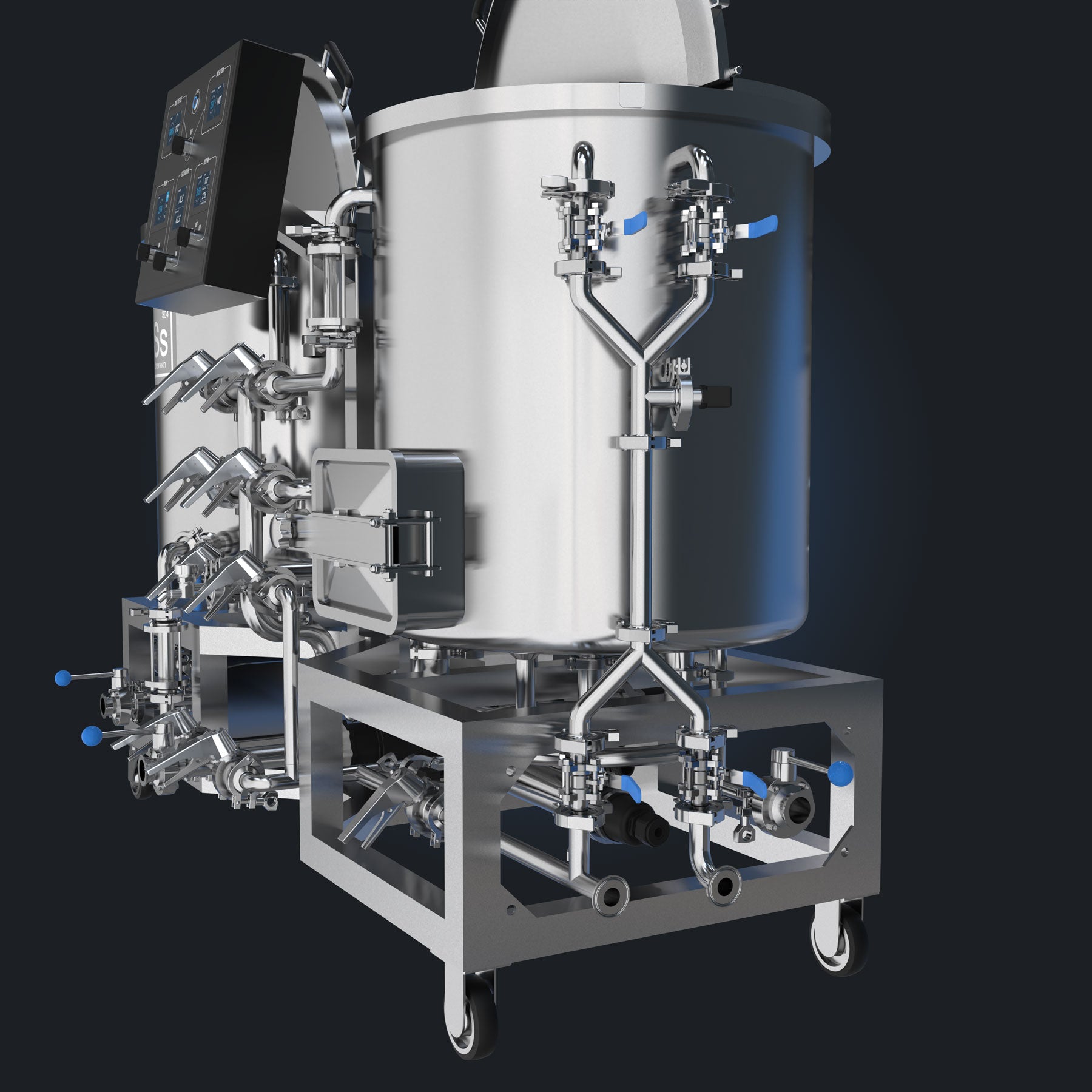

  • Auto-Fill blending manifold
  • Proportional heating element control with pro-inspired touch controls with dynamic voltage adjustability
  • Tangential whirlpool port
  • Steam condensate stack
  • LED vessel lights

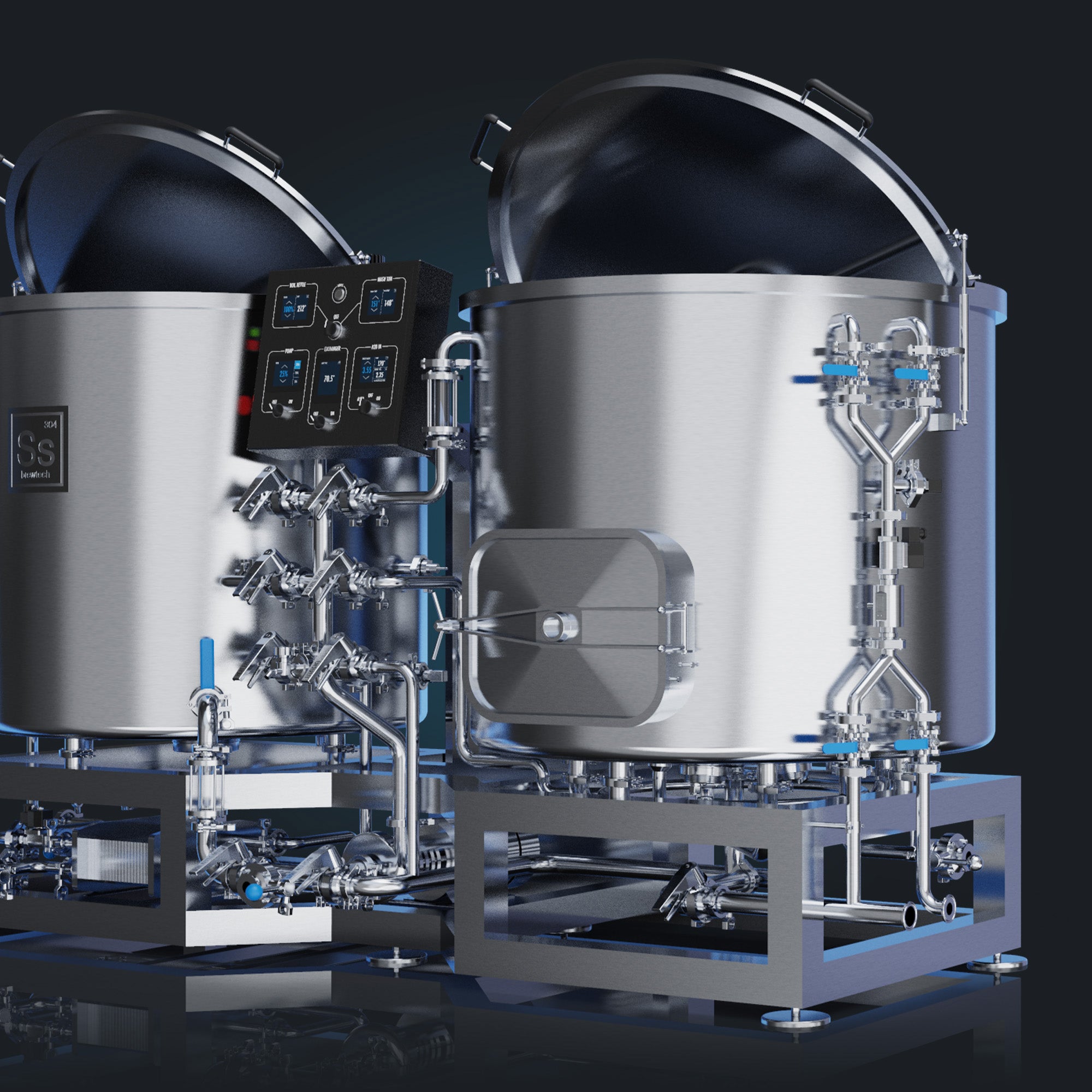

  • Stainless hard piping throughout with valve tree
  • N02 spring-assisted lids
  • Perlick-style sampling valve
  • Dedicated CIP port
  • Sparge ring
  • Dedicated underlet leg
  • Cart-mounted electrical service panels
  • Ships fully assembled and ready to brew

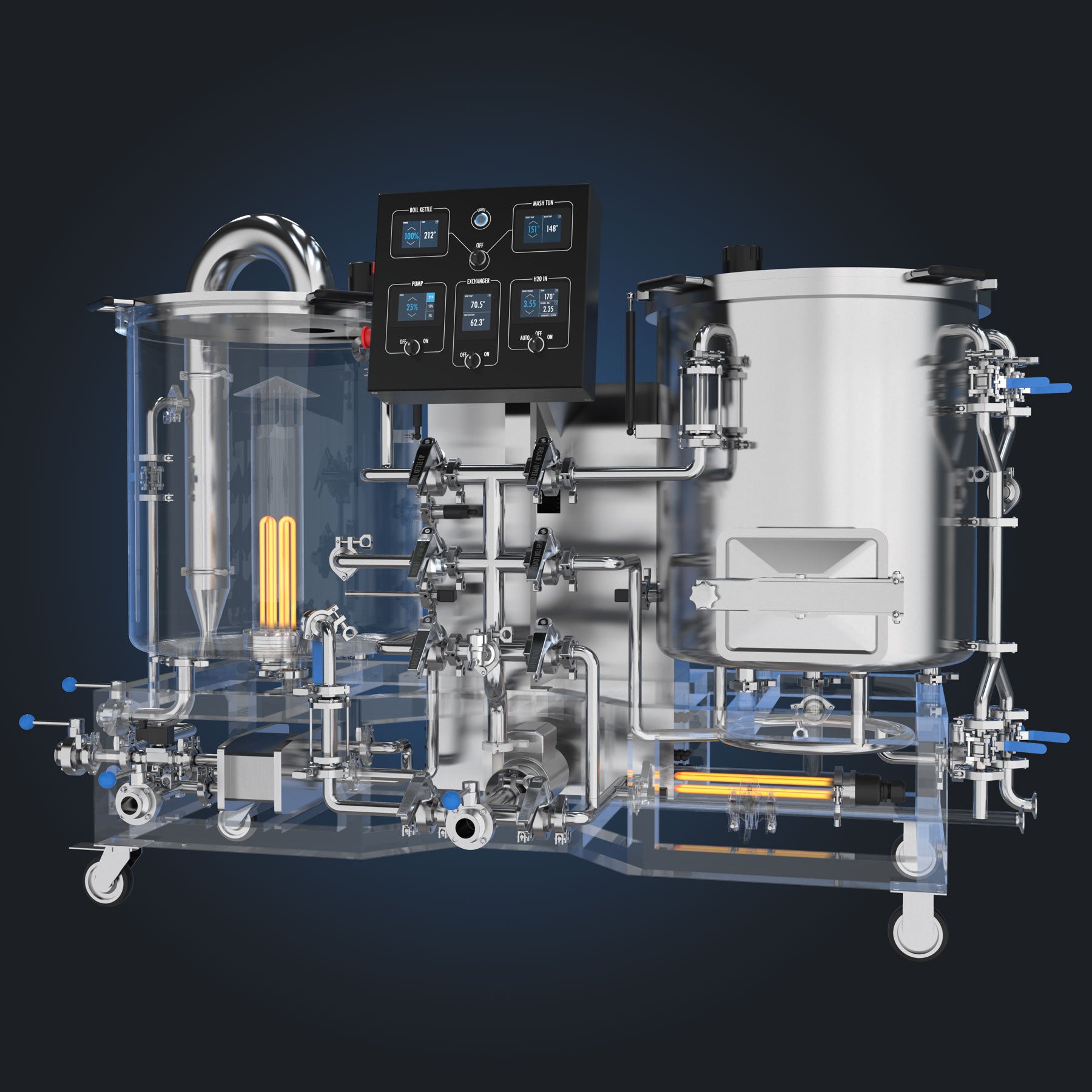

  • 1 bbl Brewhouse features 11,500w Boil Kettle element, 4000w external RIMS element
  • 3.5bbl Brewhouse features 24,000w Boil Kettle element, 18,000w sub False Bottom RIMS elements
  • 2B Mill Finish
  • Butterfly valves, sight glasses, and TC gaskets
  • PRO DESIGN | NANO SCALE

    PRO DESIGN | NANO SCALE

    We designed the Ss Electric Brewhouse to share many of the same features as our Pro brewhouses. The frame-mounted components, brewer-centric valve tree, grain-out door, milled false bottom, and the patent-pending internal calandria define this as a genuinely professional-grade brewhouse. Available in both 1 bbl and 3.5 bbl, the Ss Electric Brewhouse is a perfect fit for any startup brewery, brew pub, or as a high quality pilot system for a larger production brewery.

    We designed the Ss Electric Brewhouse to share many of the same features as our Pro brewhouses. The frame-mounted components, brewer-centric valve tree, grain-out door, milled false bottom, and the patent-pending internal calandria define this as a genuinely professional-grade brewhouse. Available in both 1 bbl and 3.5 bbl, the Ss Electric Brewhouse is a perfect fit for any startup brewery, brew pub, or as a high quality pilot system for a larger production brewery.

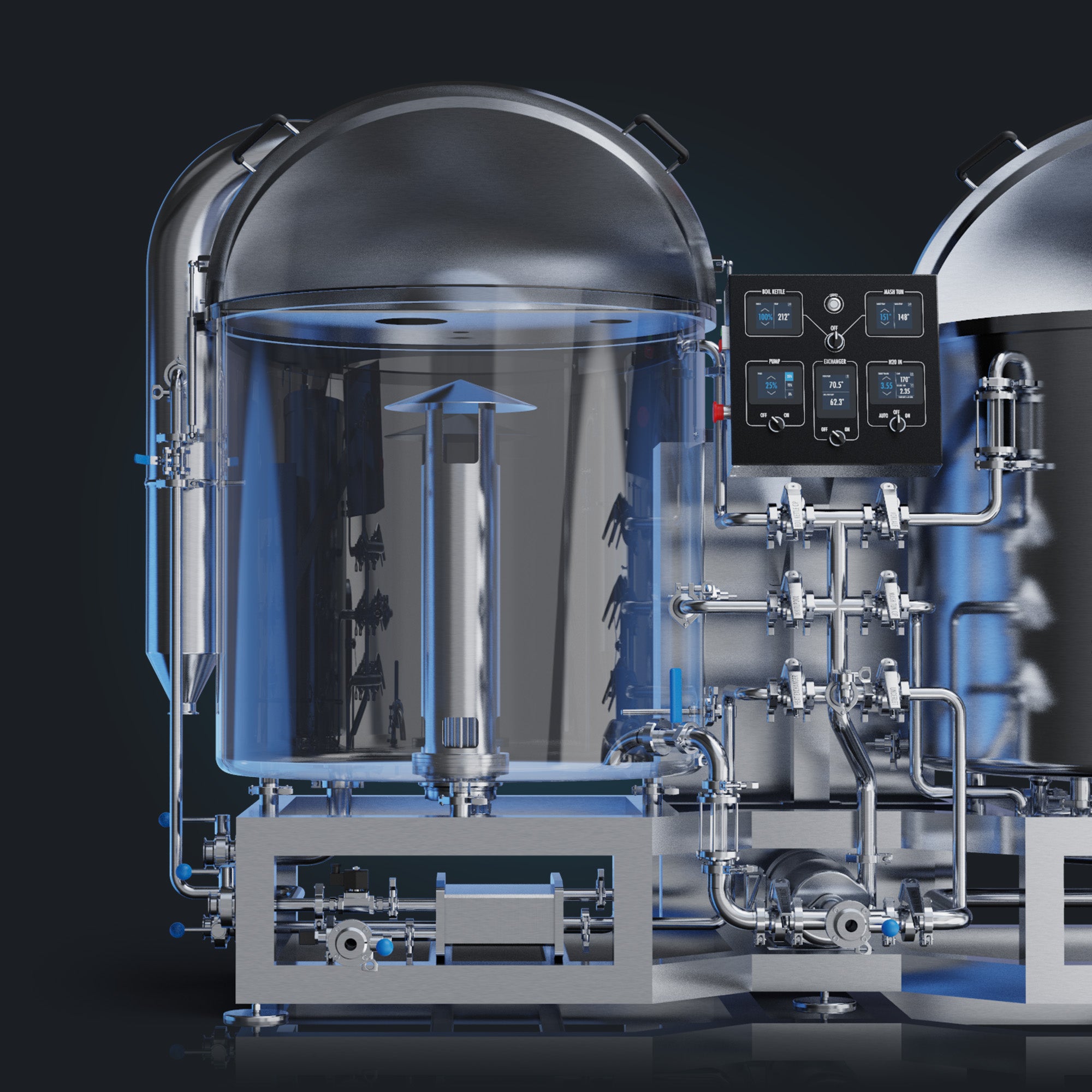

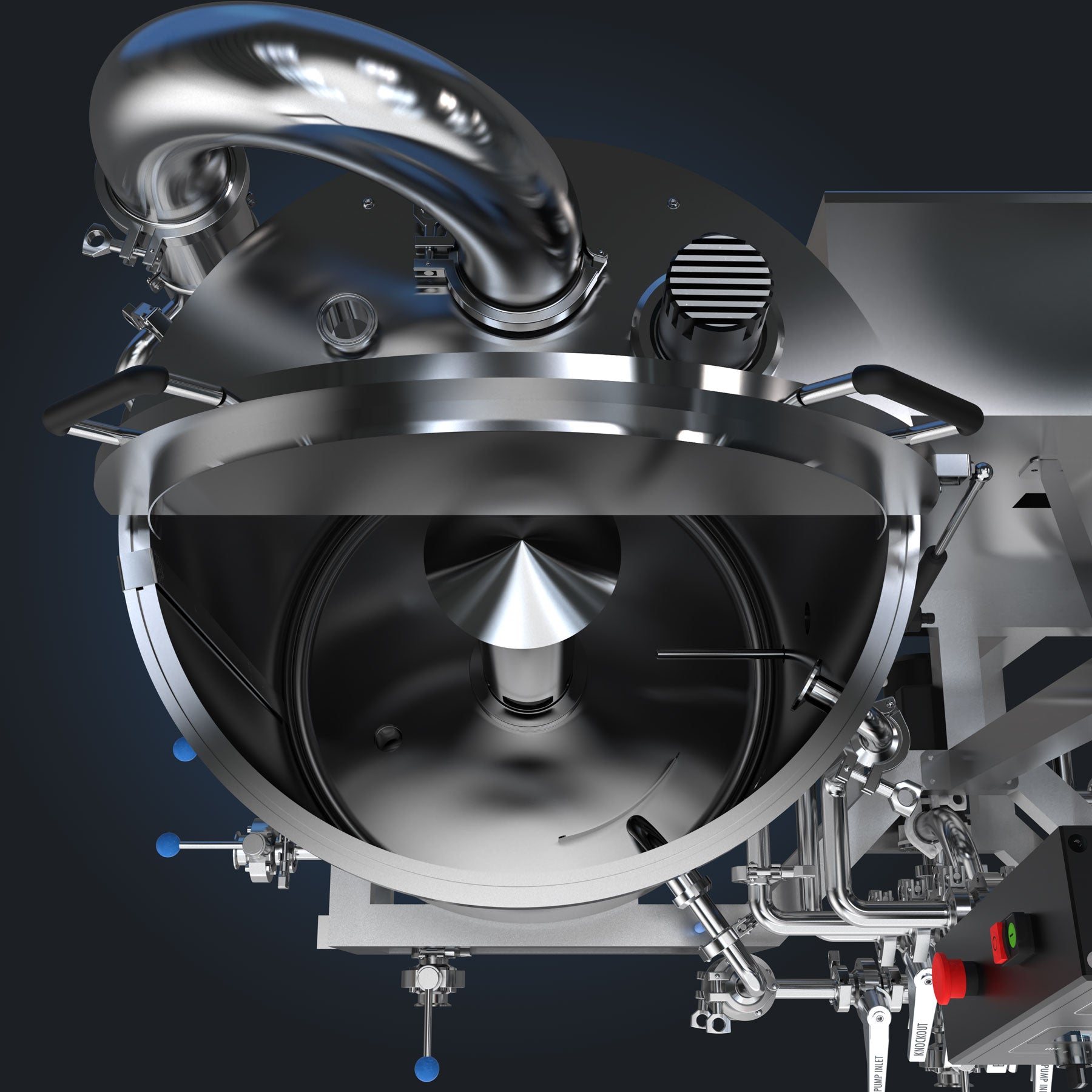

    PATENT PENDING INTERNAL CALANDRIA 2.0

    External calandrias are widely used in large scale (50 bbl+) professional brewhouses, and for good reason, as a calandria vastly improves the efficiency of a brewhouse by requiring less energy to achieve an effective boil.  Our Patent Pending internal calandria takes the essential elements of an external calandria and places them directly in the kettle.  The natural convection of the liquid removes the need for the additional complication of a calandria pump.  Version 2.0 of our popular internal calandria incorporates sealed magnets into the base of the shell to allow for easy removal and cleaning.

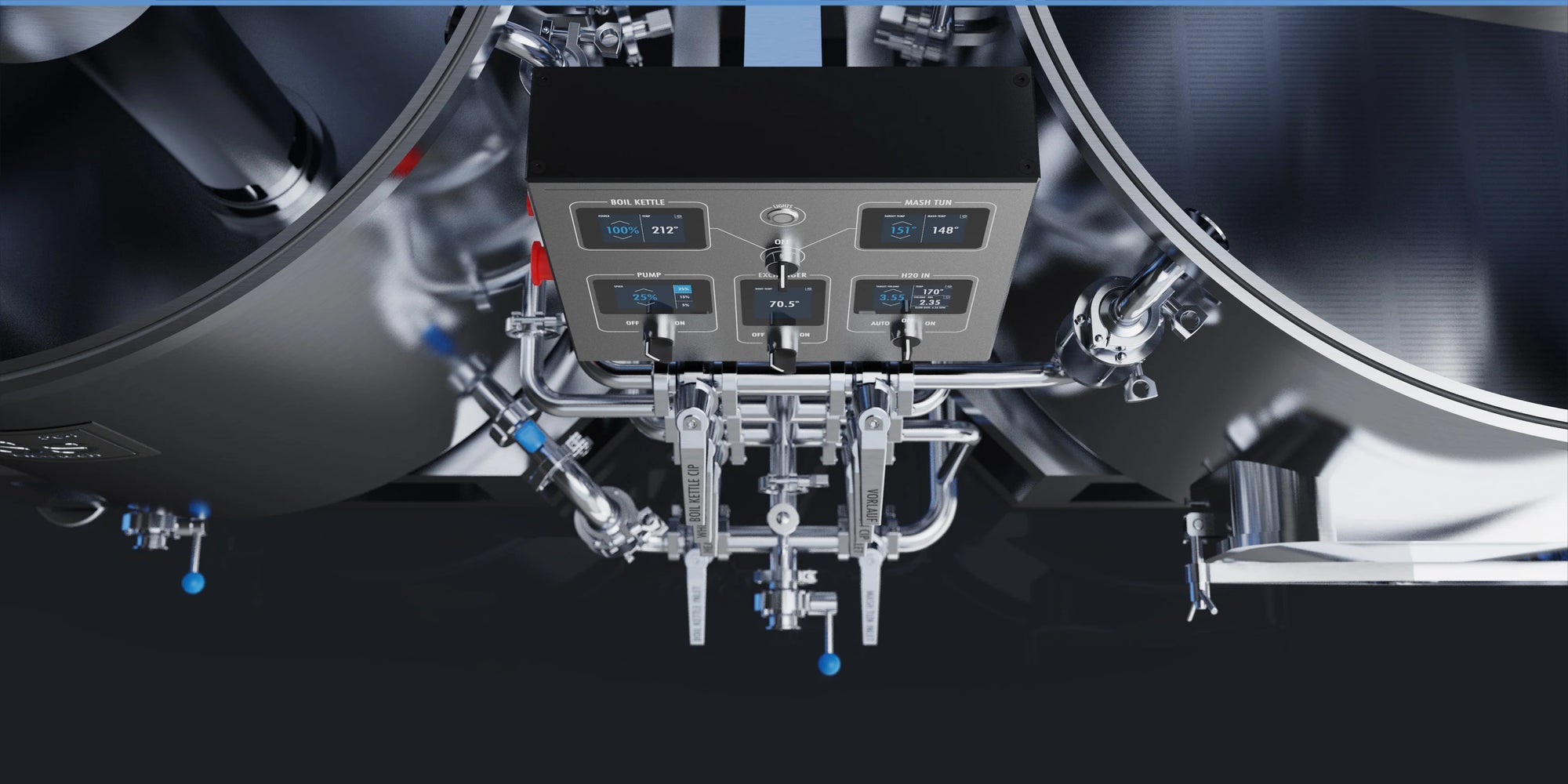

    TOUCH CONTROLS & PRO VALVE TREE

    A fundamental design element for all of our Pro Brewhouses has always been brewer-centric control.  Having all the process-significant valves on a centralized tree allows for quick and accurate adjustments during your brew day. The Ss Electric Brewhouse incorporates our reimagined user interface. The new control panel design incorporates touch controllers and the ability to automate some key functions. The result is a brewhouse with a much higher degree of precision than ever before.

    PATENT PENDING INTERNAL CALANDRIA 2.0

    External calandrias are widely used in large scale (50 bbl+) professional brewhouses, and for good reason, as a calandria vastly improves the efficiency of a brewhouse by requiring less energy to achieve an effective boil.  Our Patent Pending internal calandria takes the essential elements of an external calandria and places them directly in the kettle.  The natural convection of the liquid removes the need for the additional complication of a calandria pump.  Version 2.0 of our popular internal calandria incorporates sealed magnets into the base of the shell to allow for easy removal and cleaning.

    TOUCH CONTROLS & PRO VALVE TREE

    A fundamental design element for all of our Pro Brewhouses has always been brewer-centric control.  Having all the process-significant valves on a centralized tree allows for quick and accurate adjustments during your brew day. The Ss Electric Brewhouse incorporates our reimagined user interface. The new control panel design incorporates touch controllers and the ability to automate some key functions. The result is a brewhouse with a much higher degree of precision than ever before.

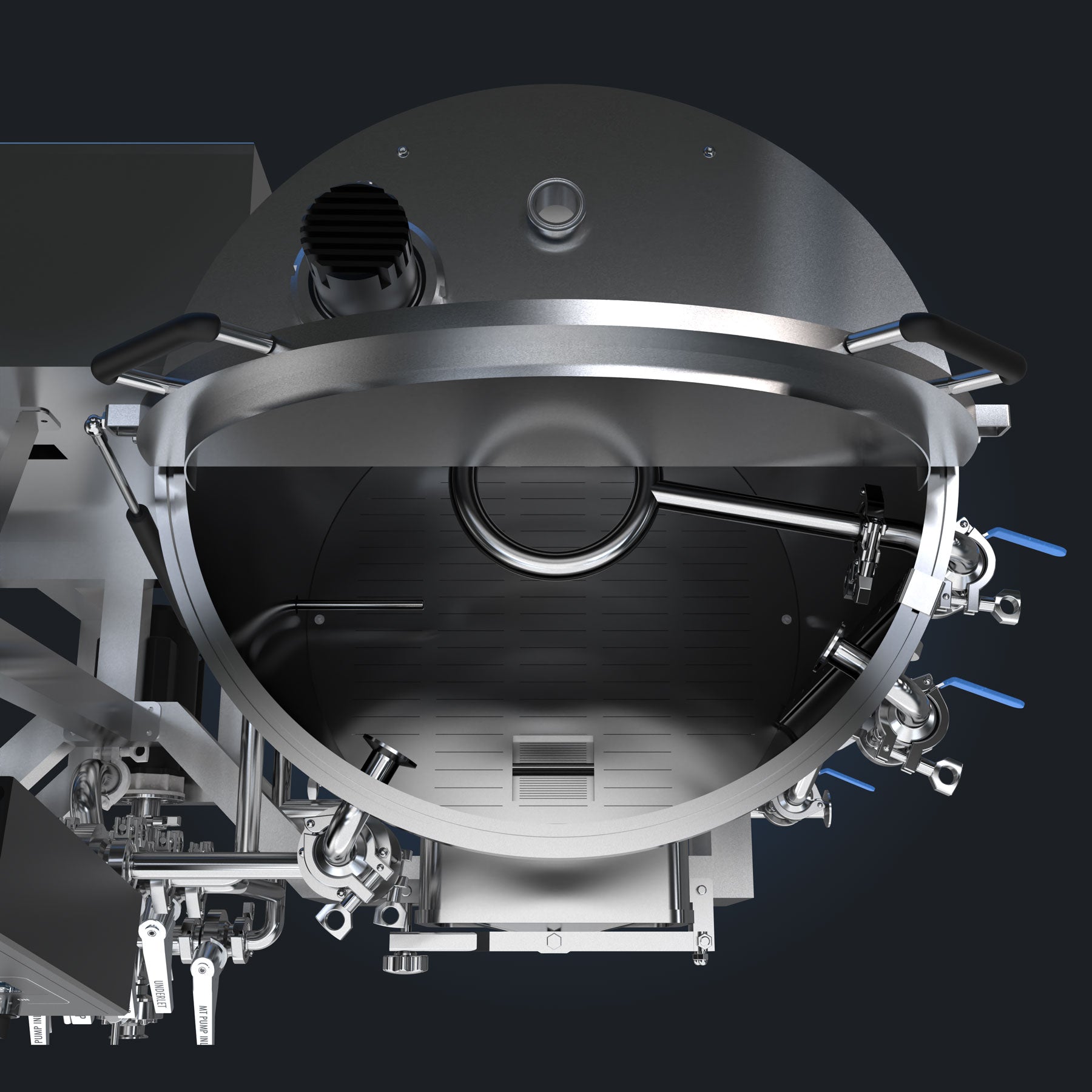

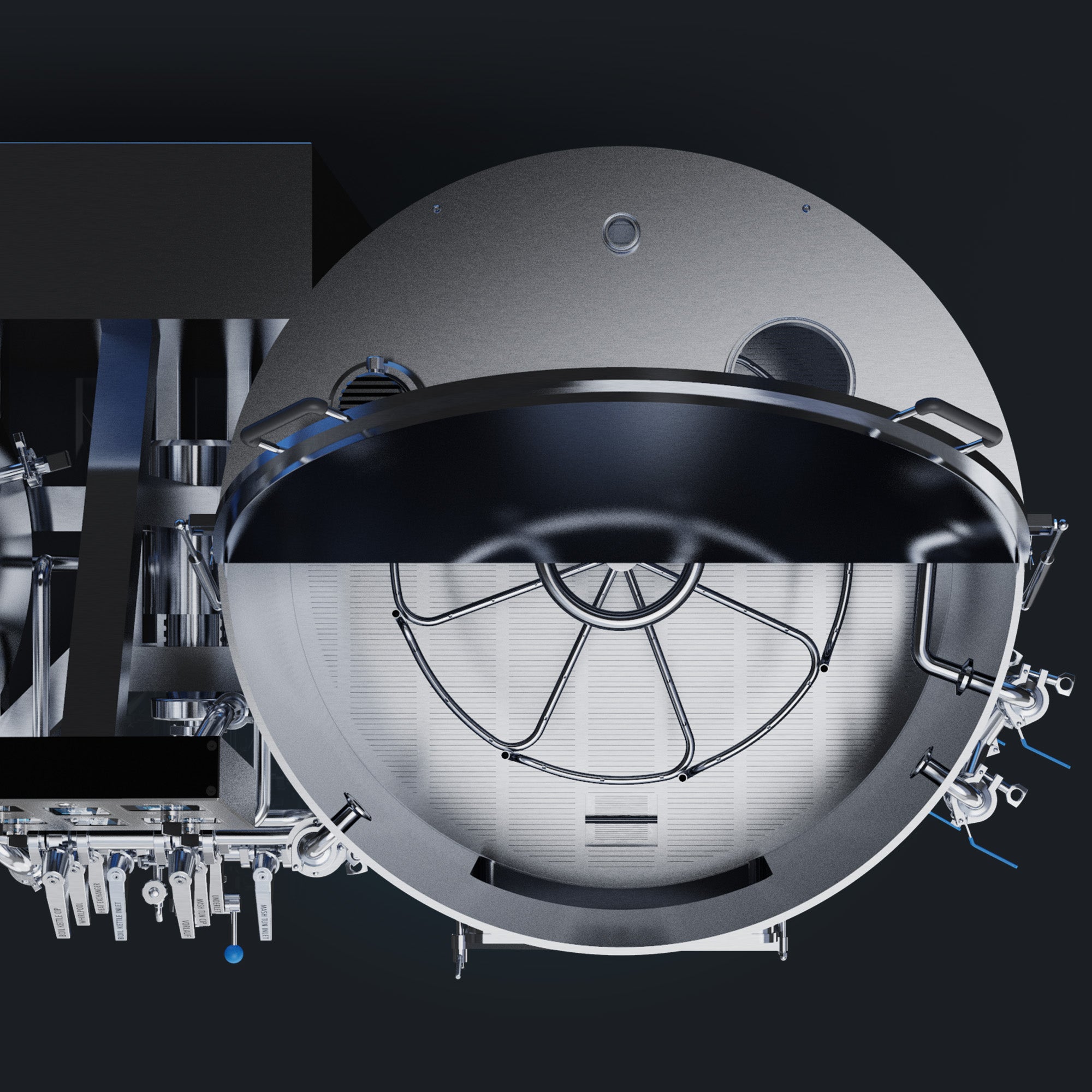

    MILLED FALSE BOTTOM AND GRAINOUT DOOR

    Milling slots into a solid plate of stainless steel is widely considered the most precise way to manufacture a false bottom. For the Ss Electric Brewhouse, we didn’t just stop at a milled false bottom, we also added a professional flush-mount grain-out door for easy removal of spent grain. Nestled beneath the false bottom is an array of 5 wort outlet ports contributing to a balanced runoff. A Recirculation Infusion Mash System (RIMS) is used for more exacting temperature control resulting in clearer wort and increased extraction.

    N02 SPRING ASSISTED LIDS & ACCESSORIES

    The gas spring assisted lids make getting a paddle into the mash tun easy, while also maintaining the ability to close the lids for better thermal efficiency and storage. The back half of the lids incorporate lights and accessory ports for future upgrades.

    MILLED FALSE BOTTOM AND GRAINOUT DOOR

    Milling slots into a solid plate of stainless steel is widely considered the most precise way to manufacture a false bottom. For the Ss Electric Brewhouse, we didn’t just stop at a milled false bottom, we also added a professional flush-mount grain-out door for easy removal of spent grain. Nestled beneath the false bottom is an array of 5 wort outlet ports contributing to a balanced runoff. A Recirculation Infusion Mash System (RIMS) is used for more exacting temperature control resulting in clearer wort and increased extraction.

    N02 SPRING ASSISTED LIDS & ACCESSORIES

    The gas spring assisted lids make getting a paddle into the mash tun easy, while also maintaining the ability to close the lids for better thermal efficiency and storage. The back half of the lids incorporate lights and accessory ports for future upgrades.
