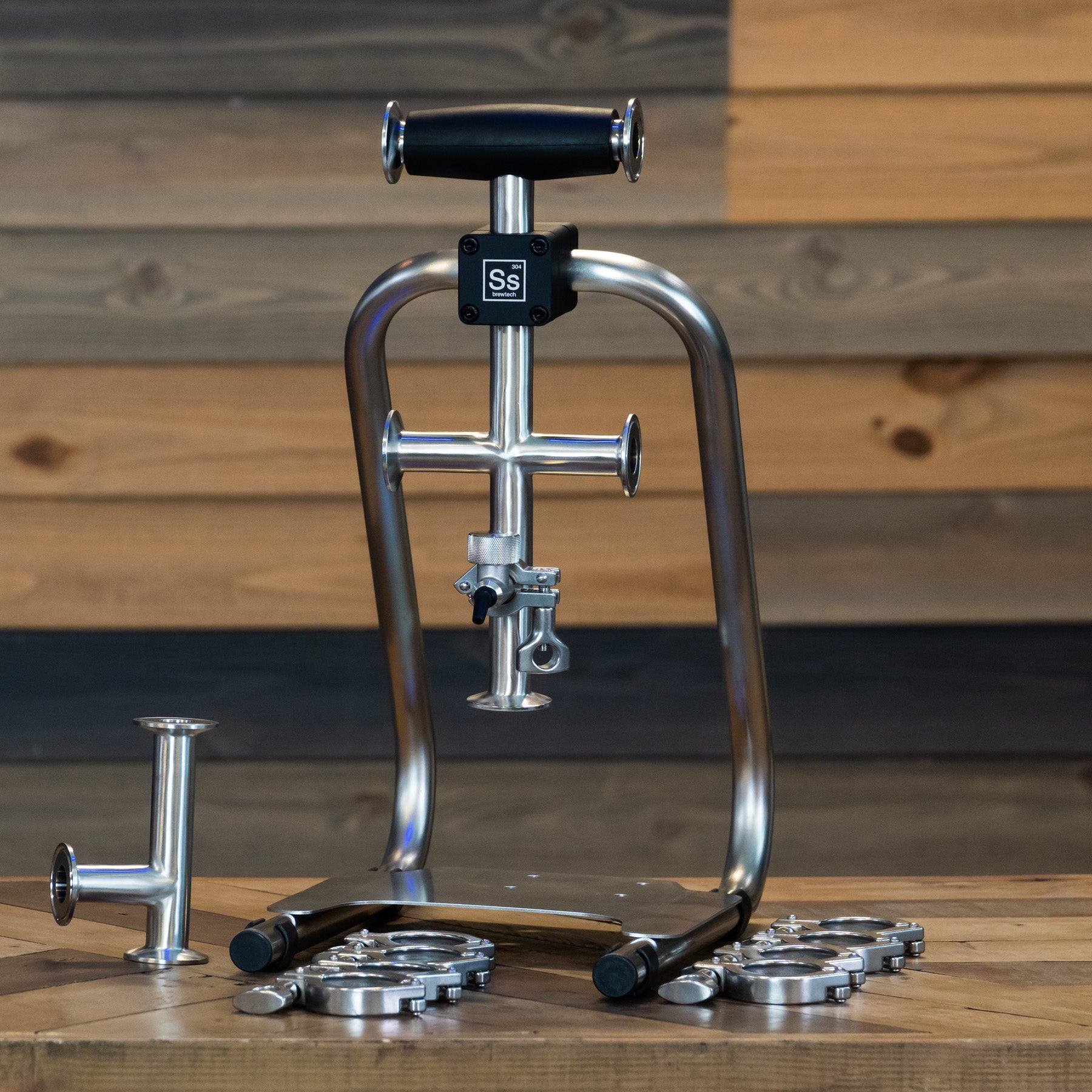

Inspired by the patented valve trees on every Ss Brewtech Pro Brewhouse. The Portable Valve Tree makes it easy to transfer your brews in and out of your brew vessels without needing to constantly disconnect and reconnect your pump.
Pre-drilled holes in the base plate allow Chugger TC Stainless Head Pumps to be installed with ease.

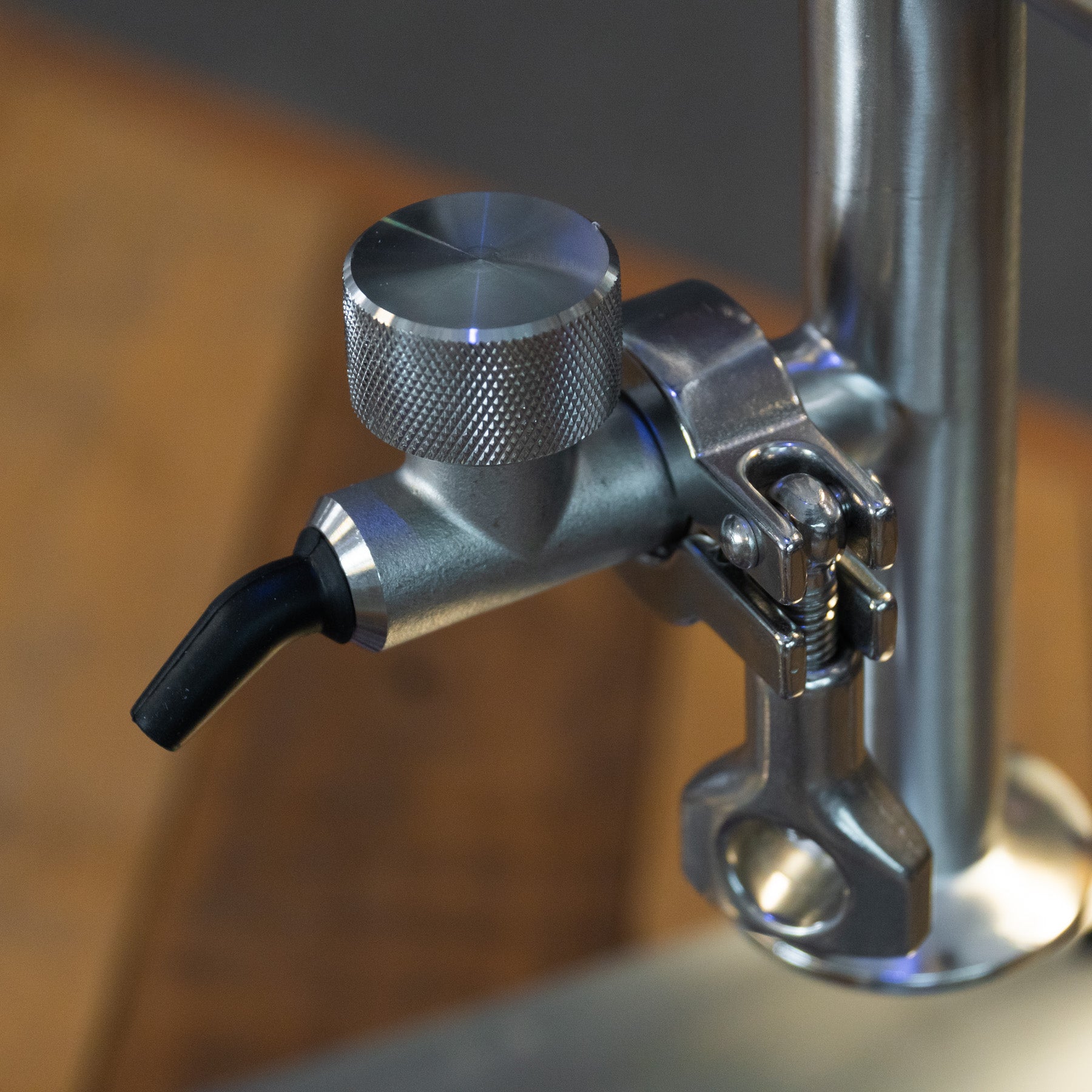

Taking samples is critical during a brew day, so just like the Pro Brewhouses, the Portable Valve Tree includes a sample valve. The Pure Flow Sample Valve, pulled from the Chronical 2.0, is the perfect pairing.

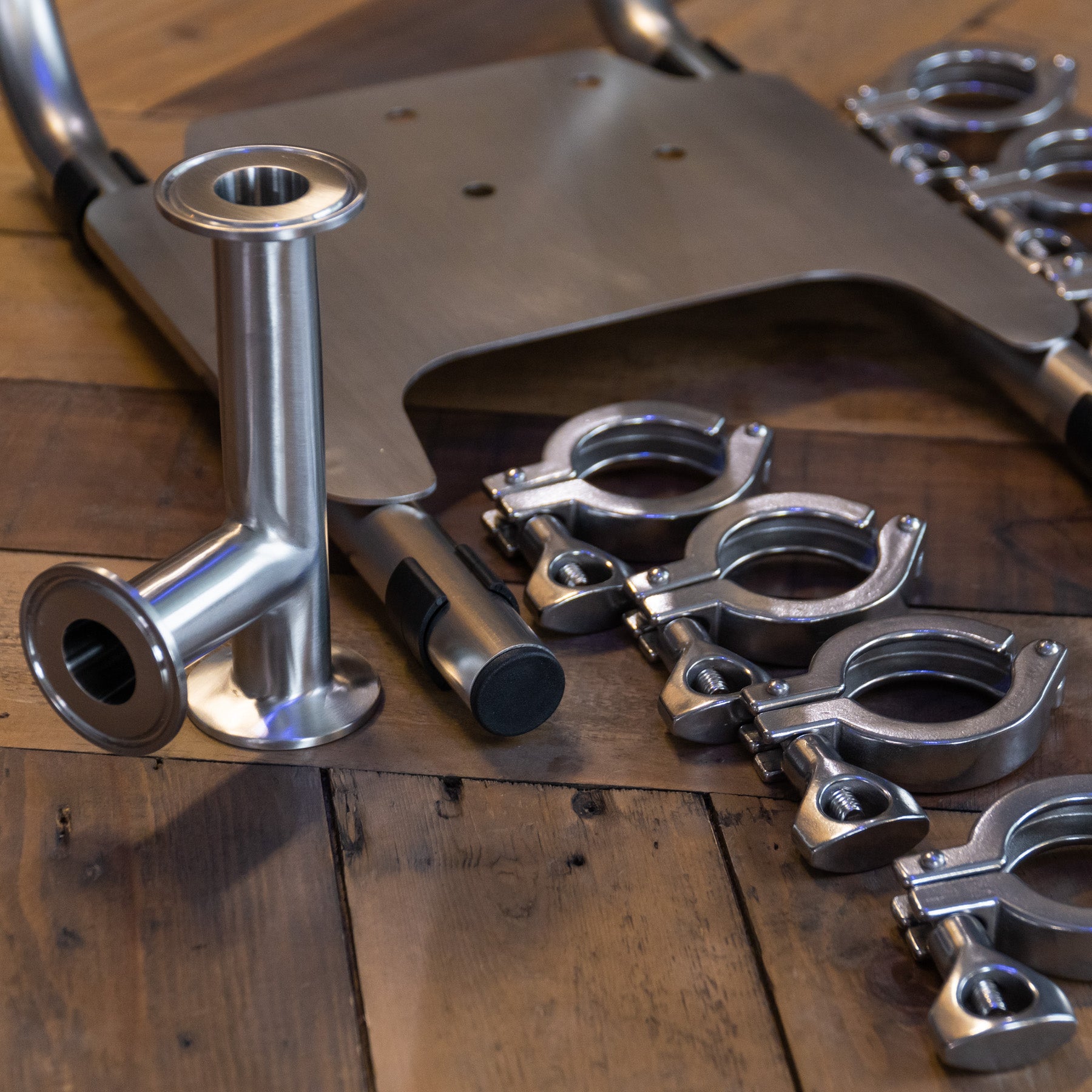

Valve Tree Assembly
(8) 1.5" TC Clamps
(8) 1.5" TC Gaskets
(1) 1.5" TC Offset Tee
(1) ¾” TC Sample Valve
(1) ¾” TC Clamp
Pump Mounting Hardware
*Note that the valve tree is designed to work with nearly any 1.5" TC valves and thus does not include valves.
Additional needed parts:
1.5" TC valves and Chugger TC Head Pump
Assembled Dimensions: 22"H x 10"W x 16"D
(24" Max Height)
Assembled Weight: 9lbs / 4kgs (Stand Only)
Packaged Dimensions: 23" x 18" x 15"
Packaged Weight: 21lbs / 9.5kgs
Quick Start Guides can be found at
Cleaning Recommendations can be found at
